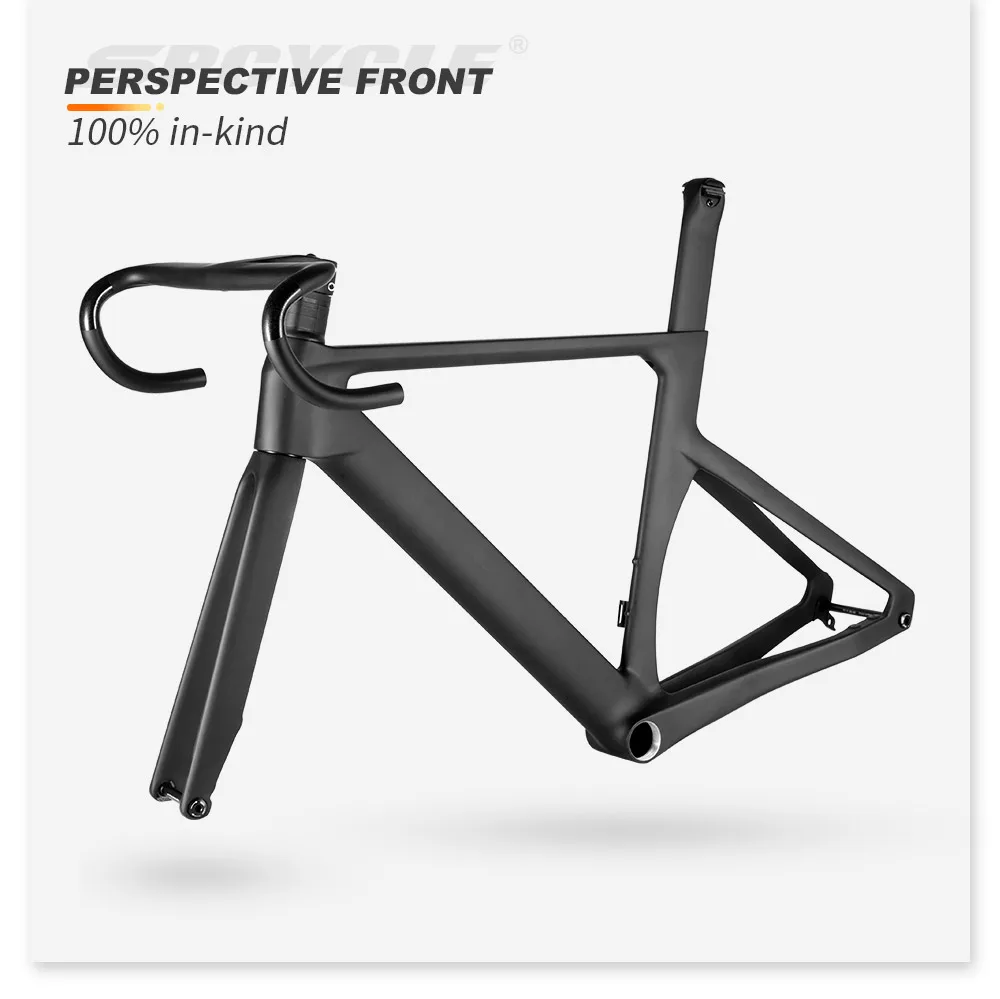

Spcycle R065 T1000 Full Carbon AERO Road Bike Disc Brake Frameset

Model: R065 700C Full Carbon AERO Road Disc Brake Frameset

• Components: Frame, fork, integrated handlebar(Options), seatpost, seatclamp, headset, spacers, thru axle

  Frame Size：XS/S/M/L/XL

• Color: Matt black or Glossy Black, Support custom colors.

  Weight: Frame Size M: 1050±30g, Fork: 410±20g, SP:210±15g, Handlebar: 380±15g (420*90mm)

  Head Tube: 1 1/2" – 1 1/2" (upper 52mm lower 52mm, )

  Fork: Full internal cable routing, 45mm offset, steering tube diameter 28.6mm.

  Default Handlebar: HB-053 Full internal cable routing, Stem angle -9 °, drop 130mm, reach 75mm with DI2 hole

  Available sizes of handlebar: 400x80/90/100mm, 420x90/100/110mm, 440x110/120mm

  Seat Post：Specific 300mm length, 0mm offset, Compatible with 7 * 7 and 7 * 9mm rails

  Bottom Bracket: T47 thread, BB shell width 86.5mm

  Max Tire: 700*32C

  Brake Type: Flat Mount Disc Brake

  Rotor: Front 160mm, Rear 140mm

  Dropout O.L.D： Rear Φ12*142mm, Fork Φ12*100mm

  Suitable Derailleur: Di2 And Mechanical Both

  Testing Standard: ISO 4210

  Warranty: 2 Years (only for frameset, excluding free parts)

  Custom Tax&Import Duty: Buyers Bear The Charges. For EU, UK and US buyers. We use DDP to deliver frames. Buyers do not need to pay any customs import taxes. shipping time about 15~25 days.
