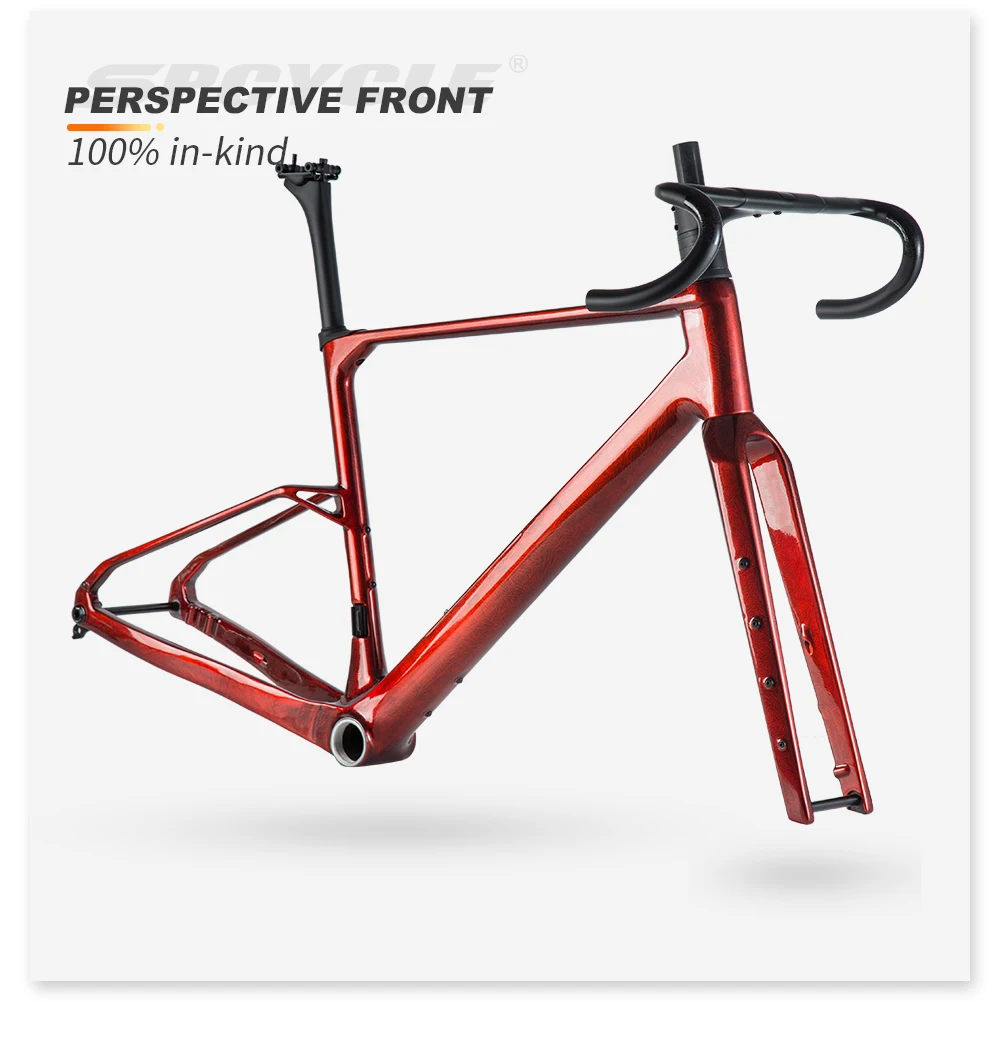

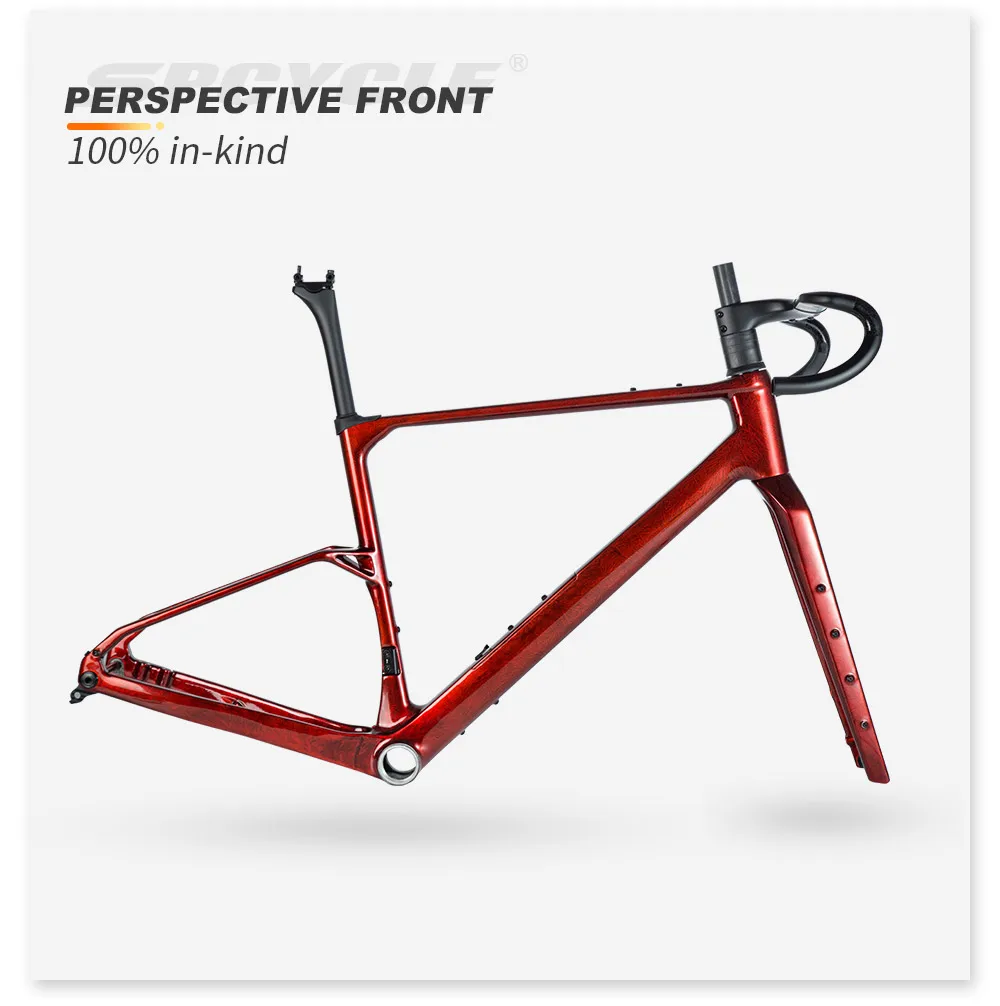

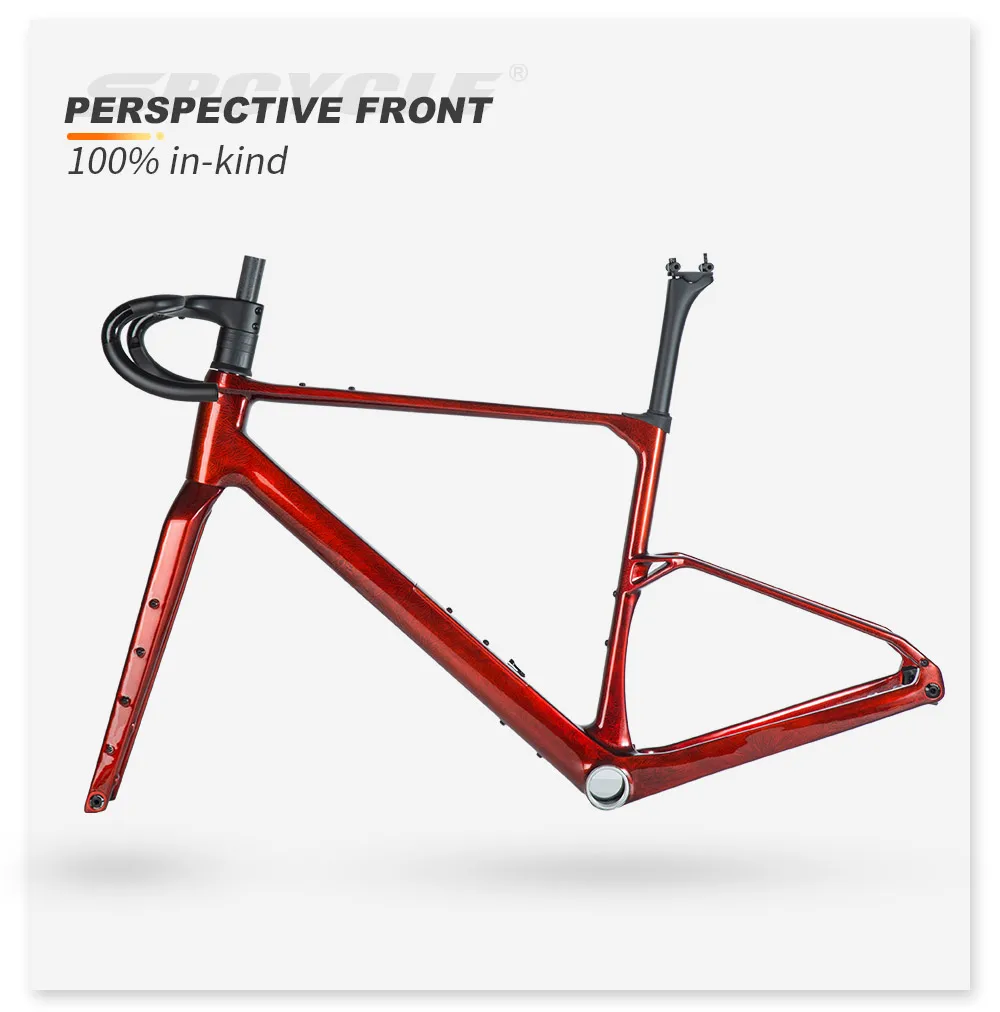

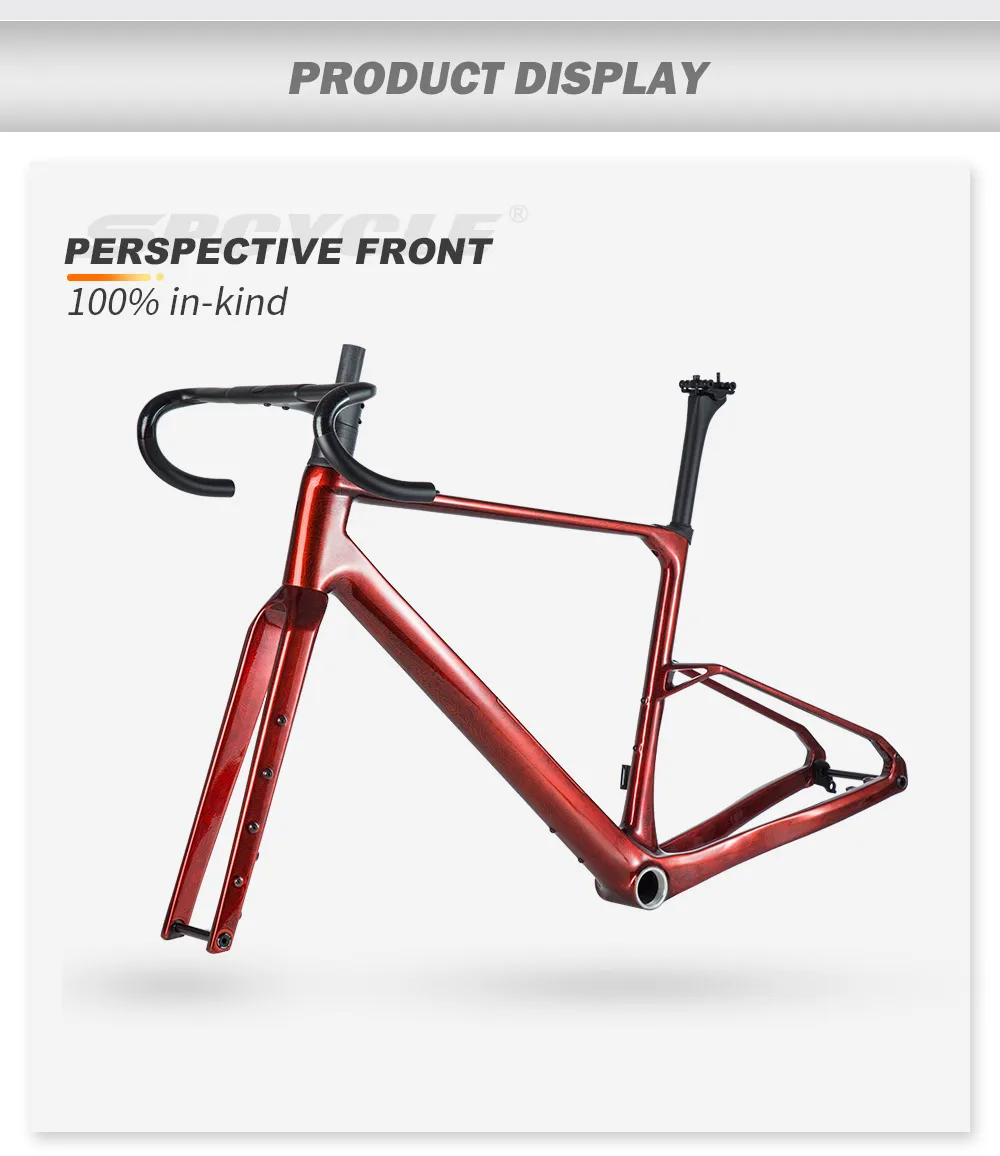

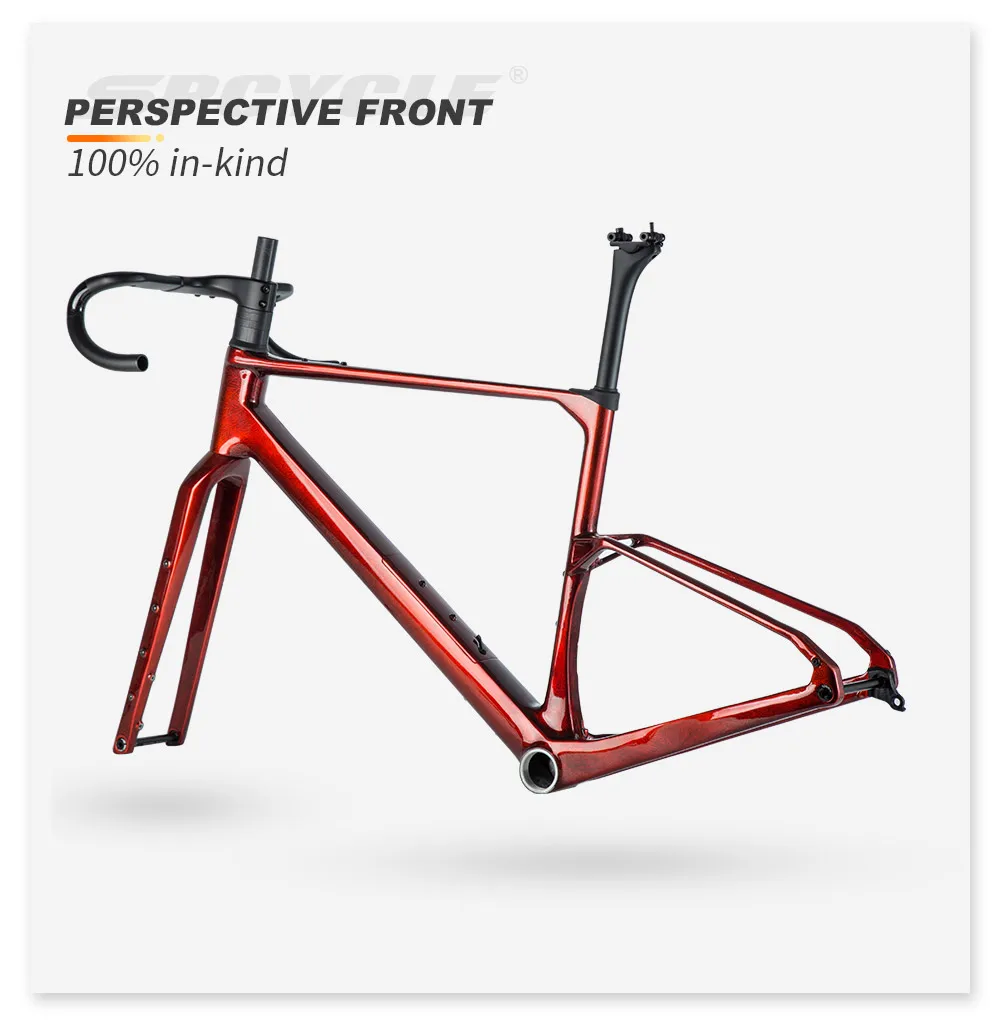

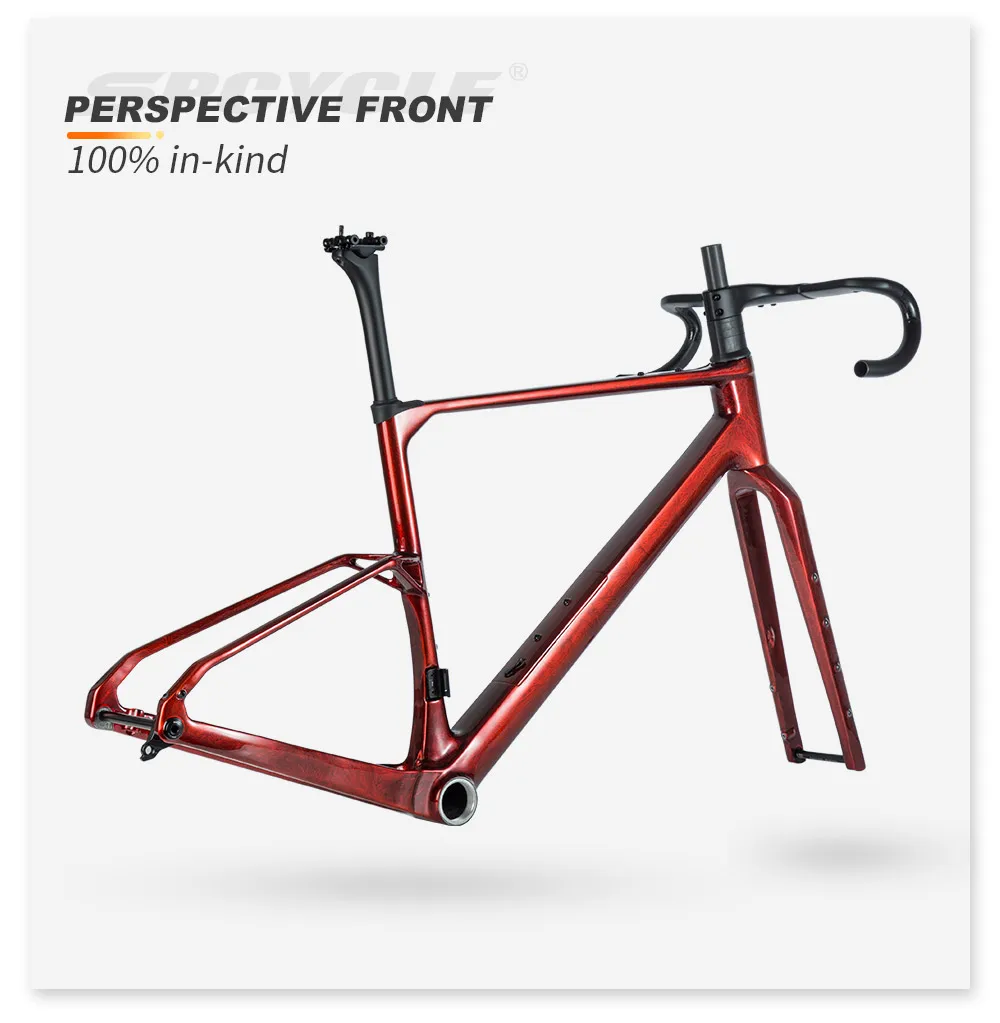

Spcycle G026 Carbon Gravel Bike Frame 700x50C UDH Thread T47 86.5 Storage Box Gravel Bicycle Carbon Frameset

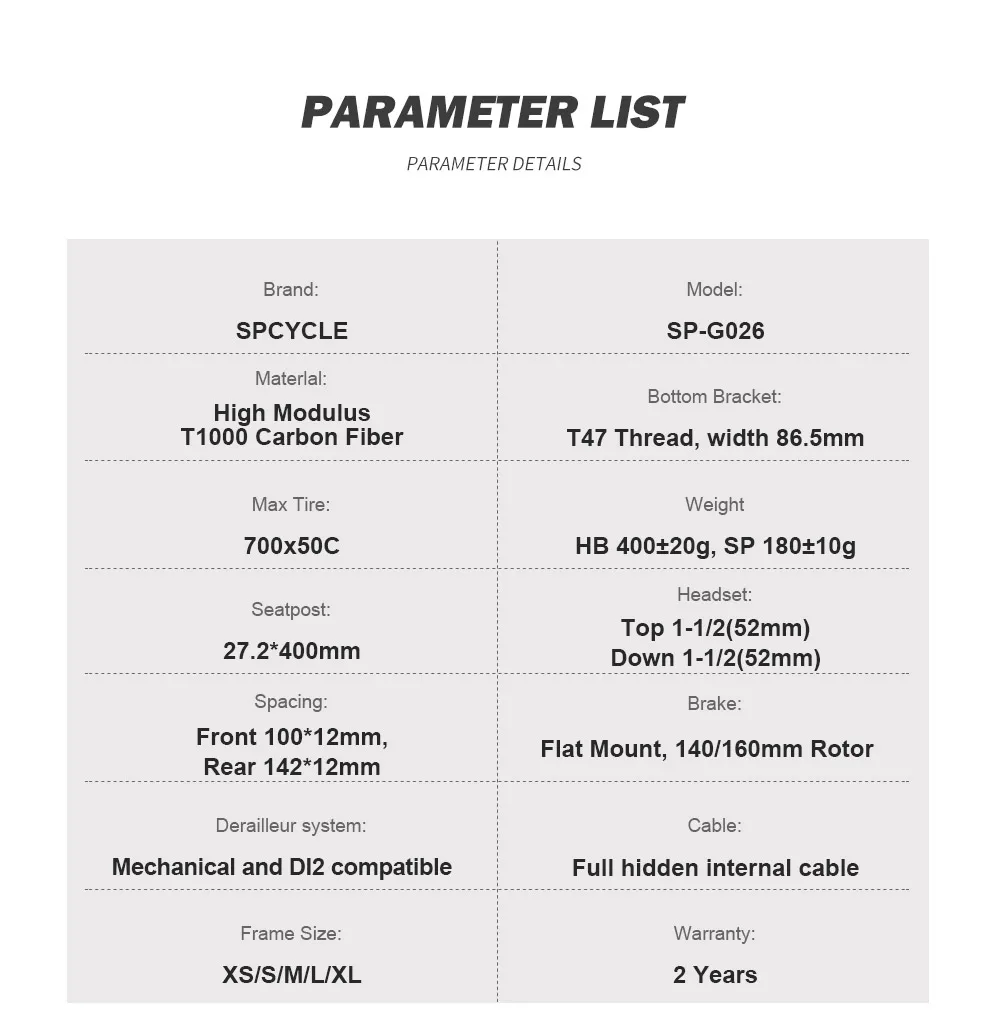

Material: High Modulus T1000 Full Carbon Fibre

Model Number: SP-G026

Frame Size: XS/S/M/L/XL

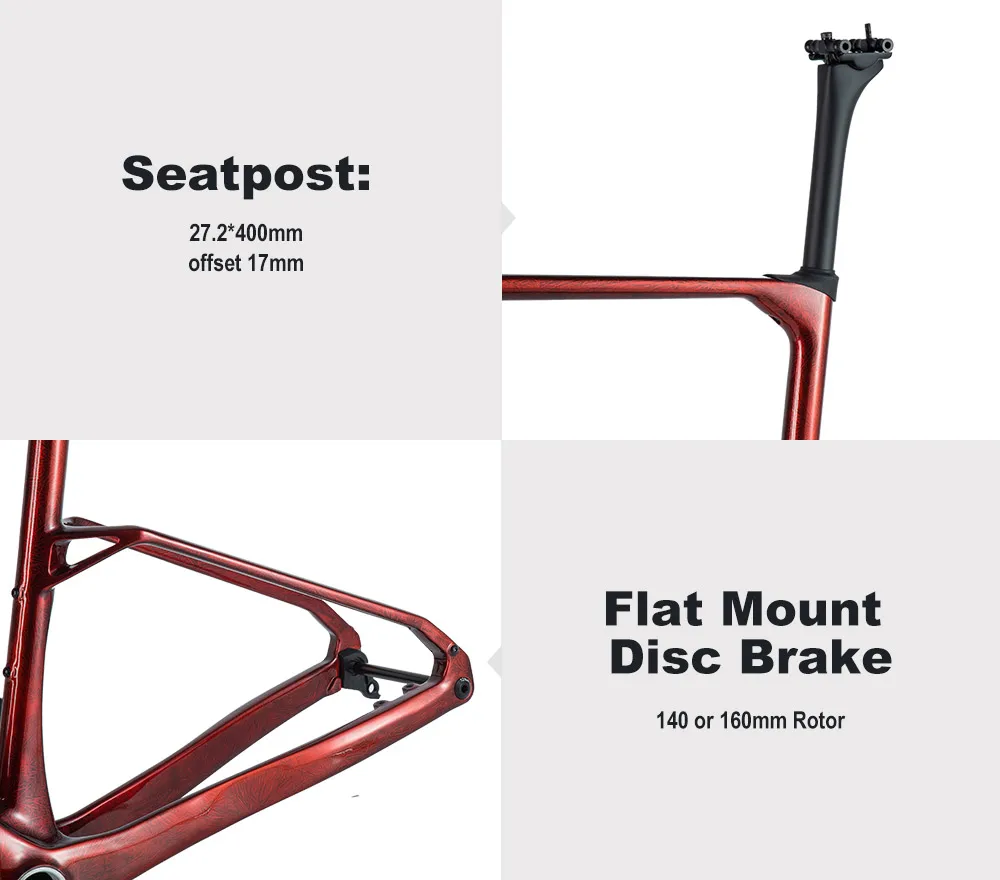

Seatpost: 27.2mm

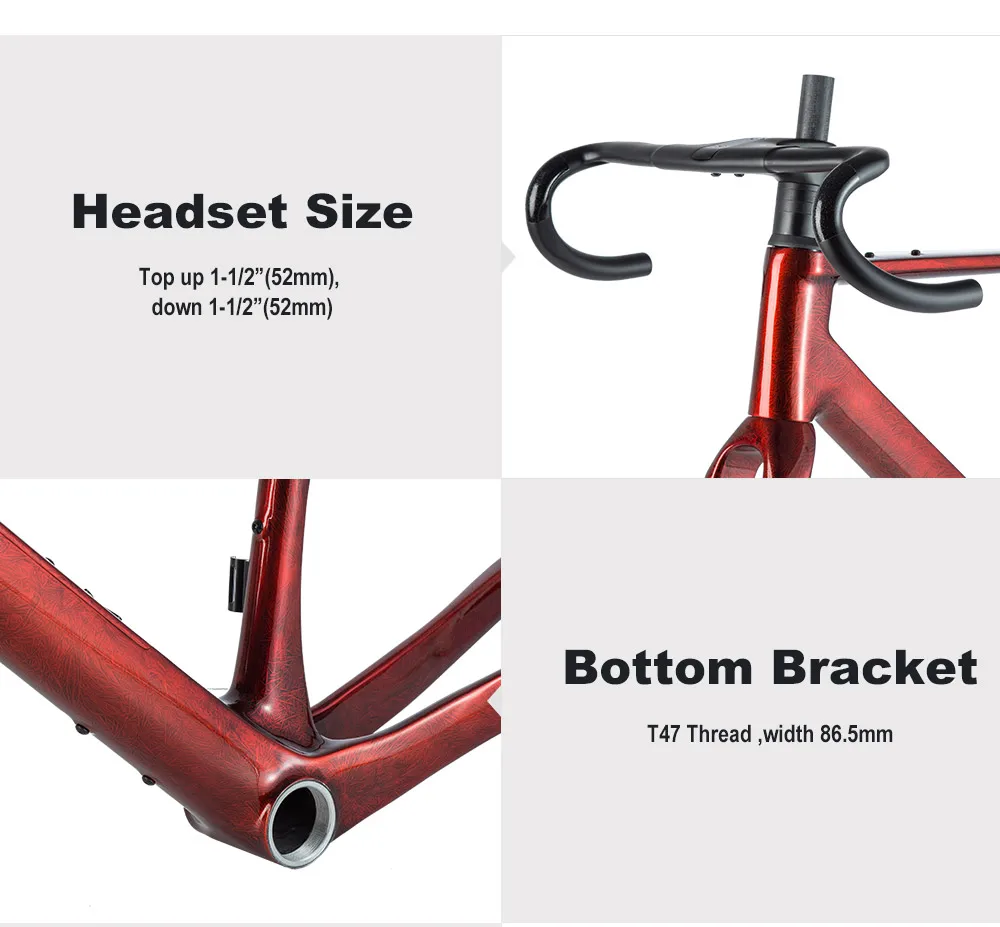

Headset Size: Top 1-1/2 (52mm) Down 1-1/2(52mm)

Bottom Bracket: T47 Thread, BB shell width 86.5mm

Finish: Glossy/Matt

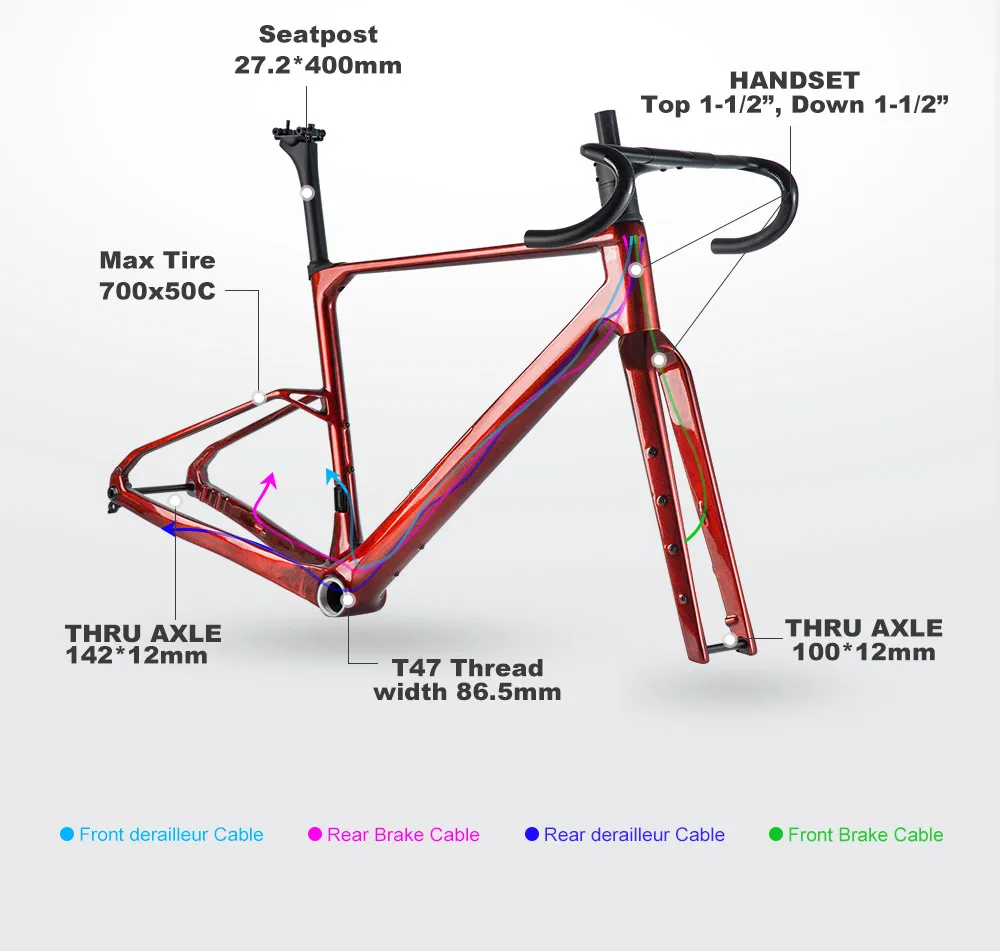

Cable: Full Hidden Internal Cable Routing

Brake: Flat Mount Disc Brake, 140 or 160mm rotor

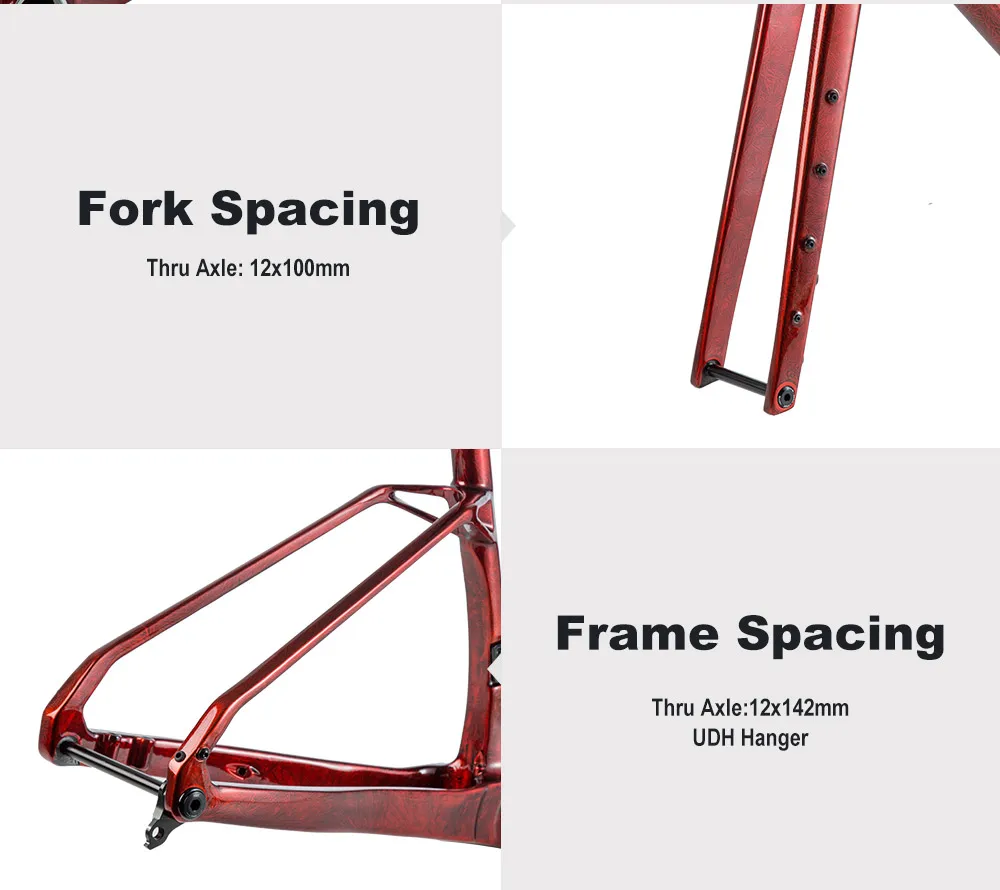

Axle Spec: Rear 142*12mm and front 100*12mm

Rear derailleur hanger: UDH Hanger

Maximum tire clearance: 700x50C

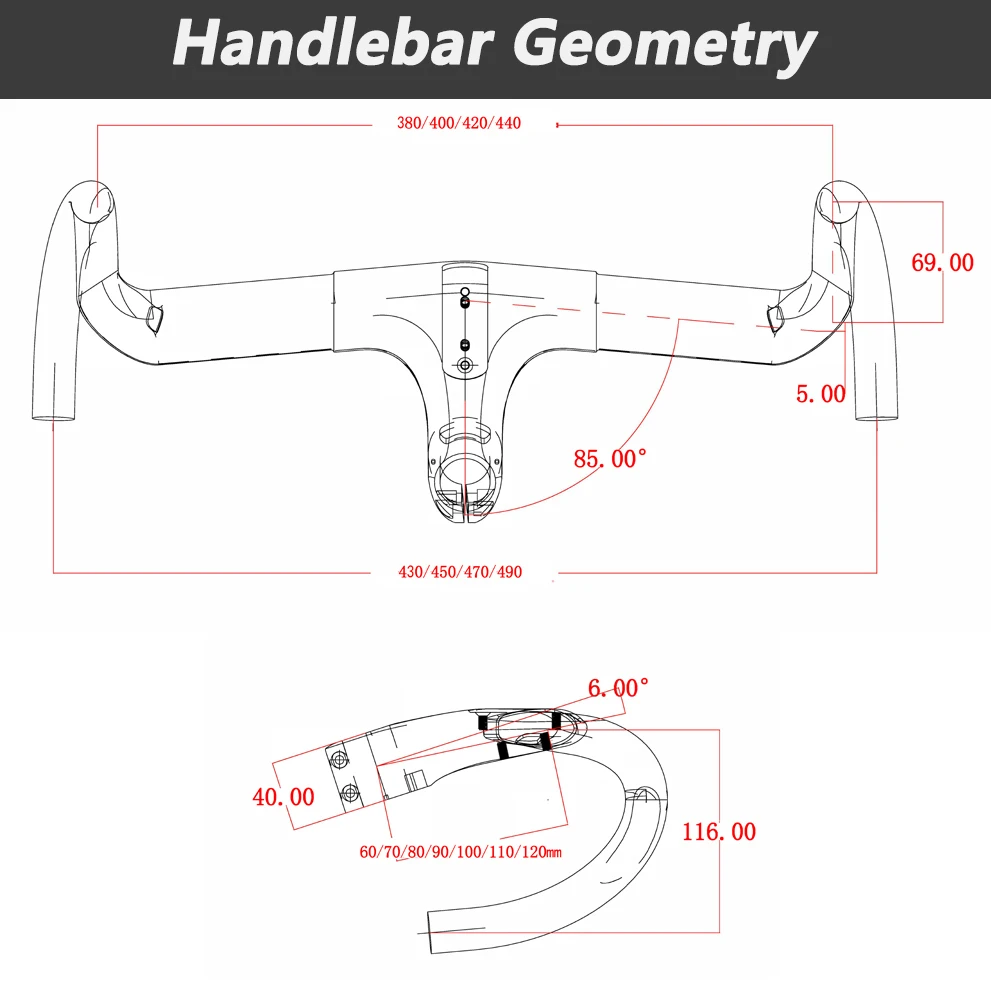

Available handlebar sizes: 380x80/90/100/110/120mm, 400x60/70/80/90/100/110/120mm, 420x70/80x90/100/110/120mm, 440x80/90/100mm, 460x80/90/100mm

Suitable Derailleur: Di2 And Mechanical Both

Weight: Frame 1250+/-60g, Fork 470+/-20g, Handlebar 400+/-20g, Seatpost 180+/-15g

Frameset Including: Frame, Fork, Handlebar, Seatpost, Headset, Seatpost Clamp, Thru Axle, UDH hanger

Warranty: 2 years (only for frameset, excluding free parts)

Special instructions：The XS frame size has no the bottle cage mount holes on the seat tube to avoid compromising the minimum insertion depth, due to the shorter length of the seat tube itself.

Custom Tax&Import Duty:

Buyers Bear The Charges. we recommend EU and UK buyers choose "DPD-UK Method", We can help you with customs clearance. Delivered directly to your home, without any taxes. shipping time about 15~25 days.

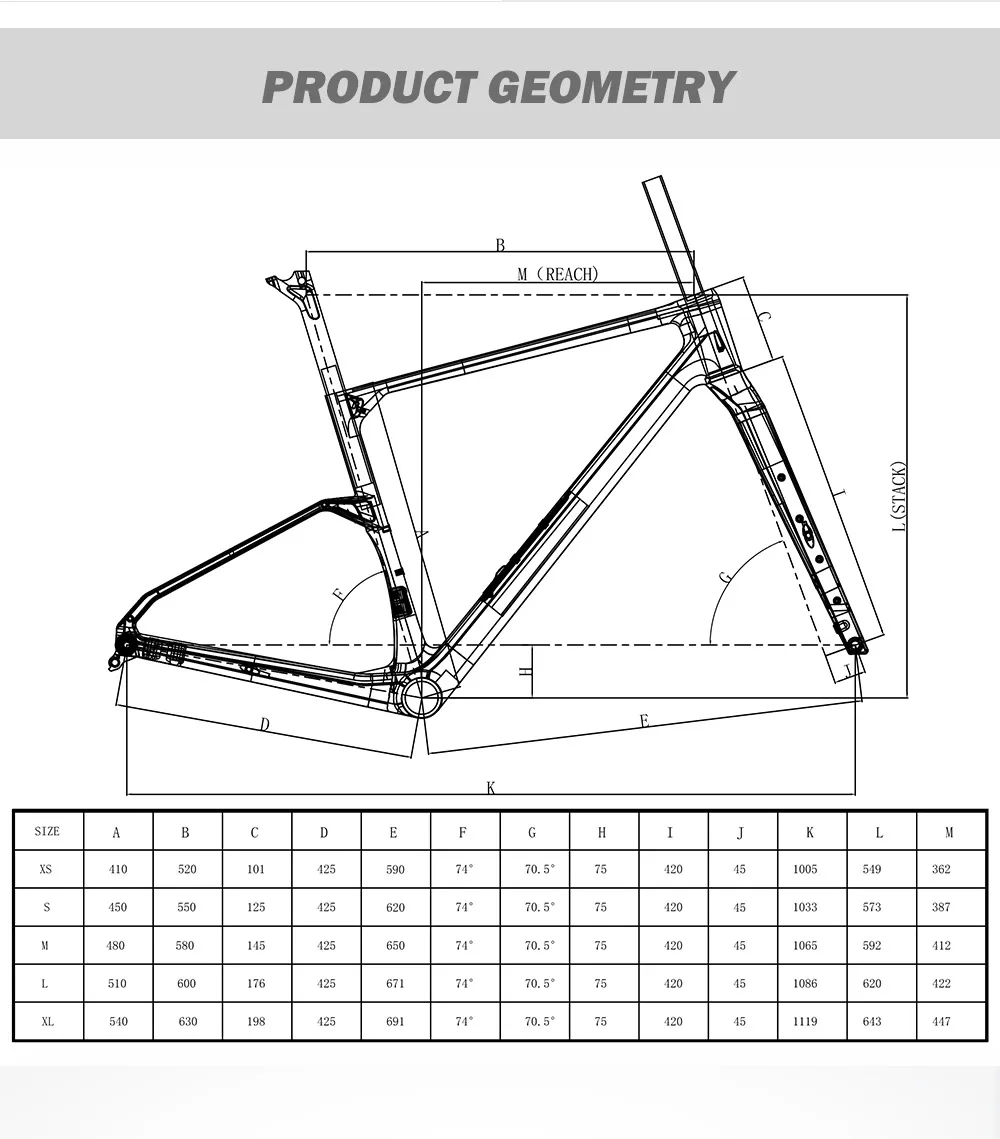

Size Selection Advice

Height 158~165cm, Size XS

Height 166~175cm, Size S

Height 176~182cm, Size M

Height 183~190cm, Size L

Height 191~199cm, Size XL
