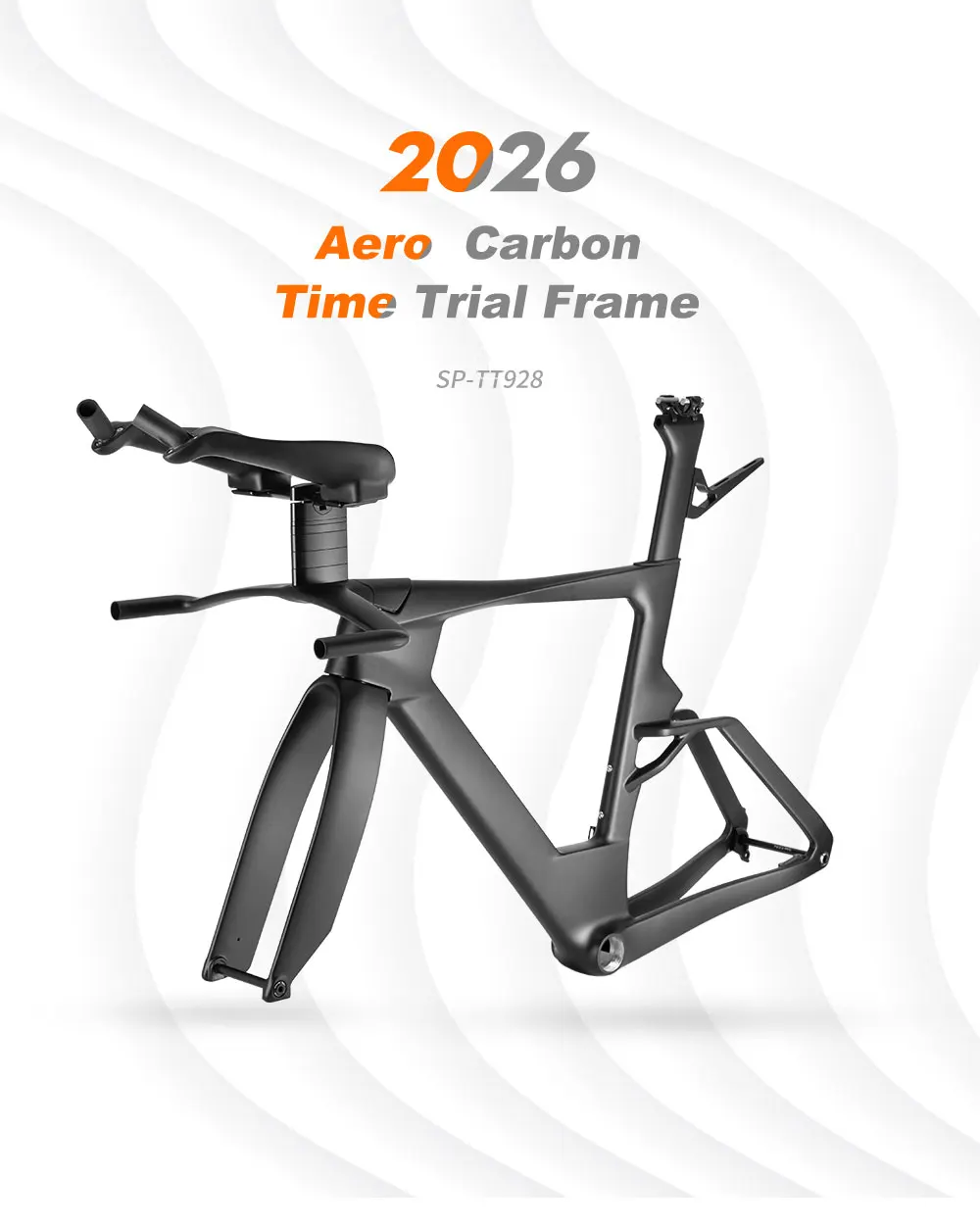

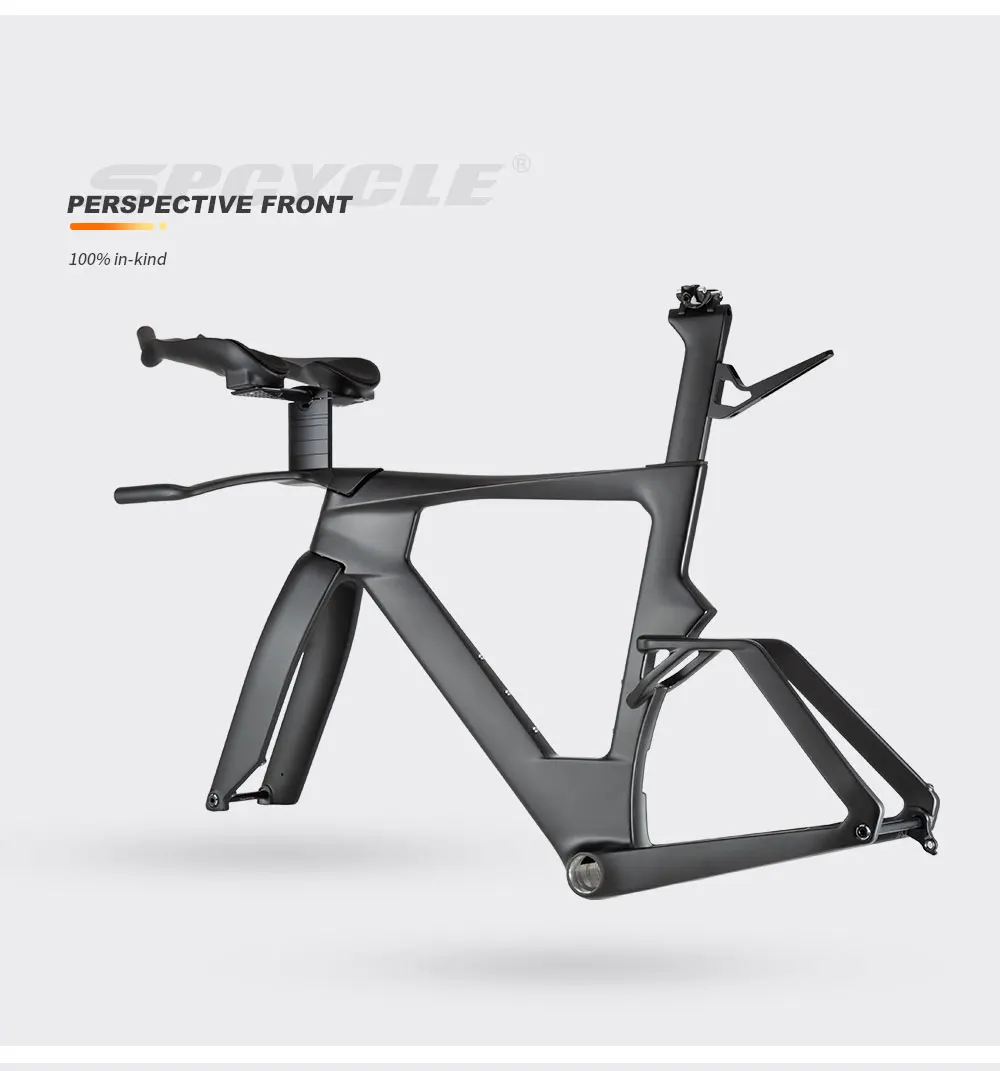

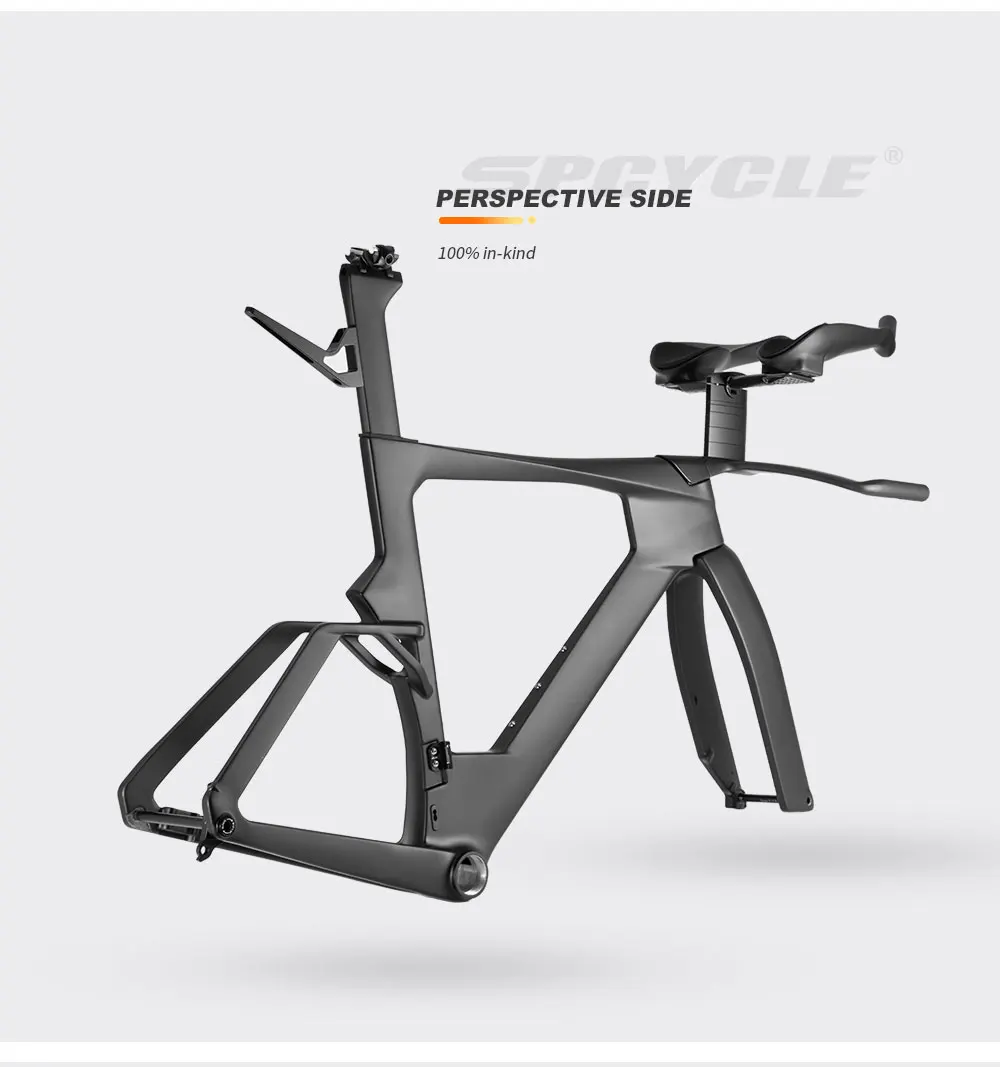

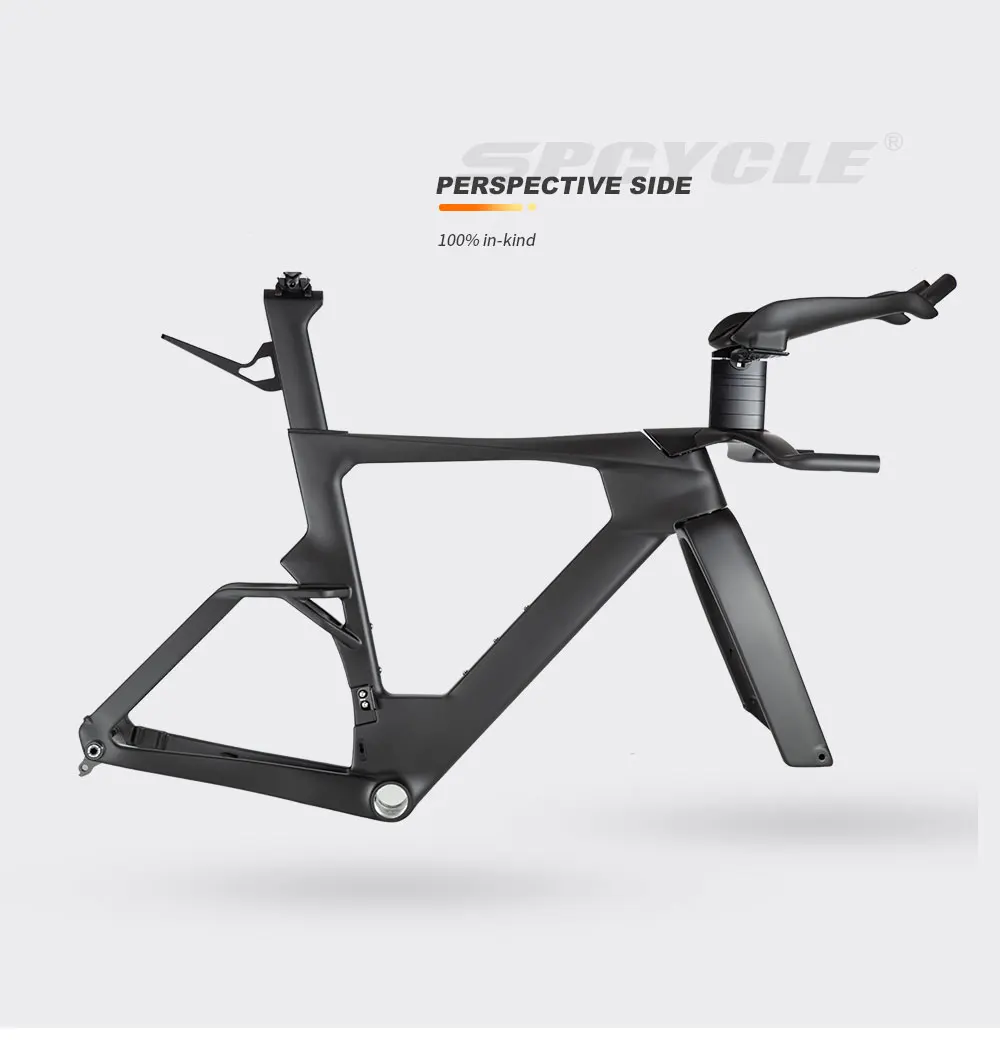

Spcycle TT928 Aero Carbon Time Trial Bike Frame UDH Hanger T47 Bottom Bracket Full Integrated Cable Time Trial Frameset

Spcycle TT928 Aero Carbon Time Trial Bike Frame UDH Hanger T47 Bottom Bracket Full Integrated Cable Time Trial Frameset

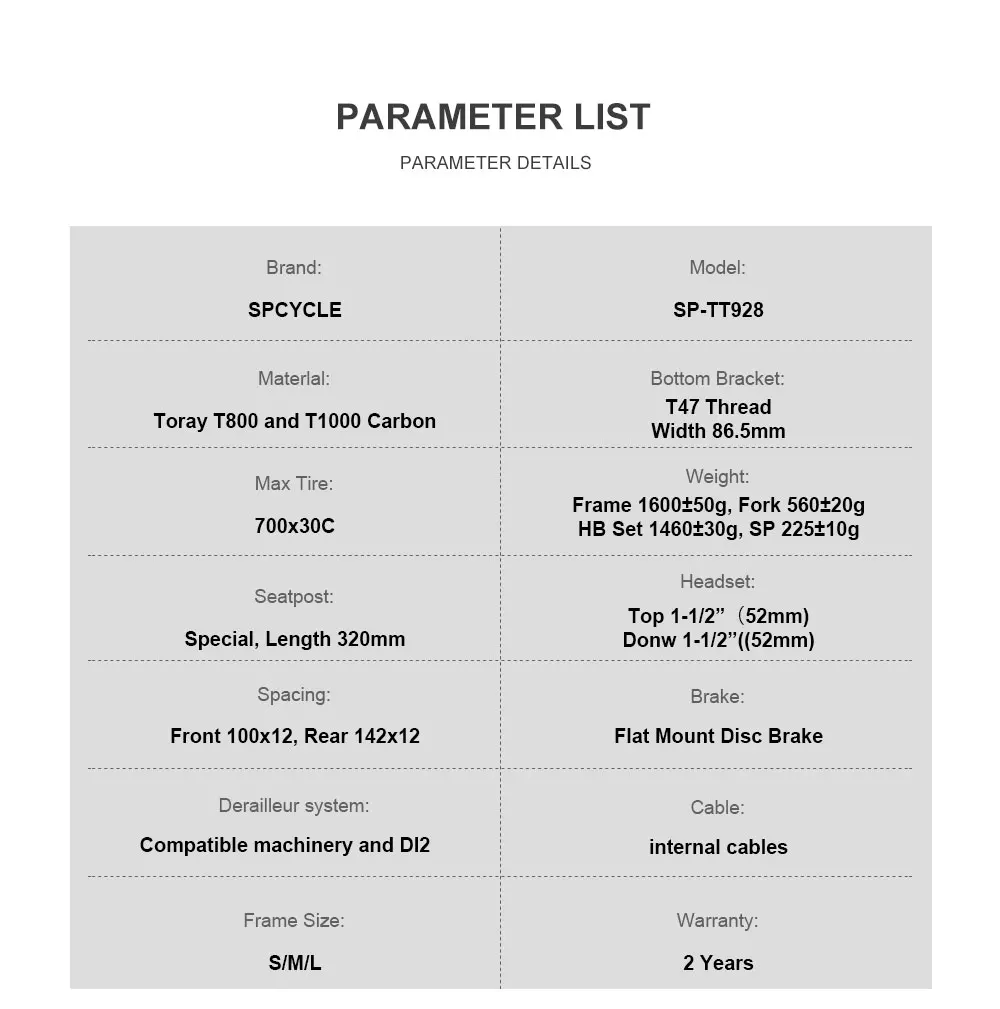

• Model: TT928 Aero Carbon Time Trial Frameset

  Components: Frame, Fork, Handlebar, Seatpost, Seatclamp, Headset, UDH hanger

  Frame Size：S/M/L

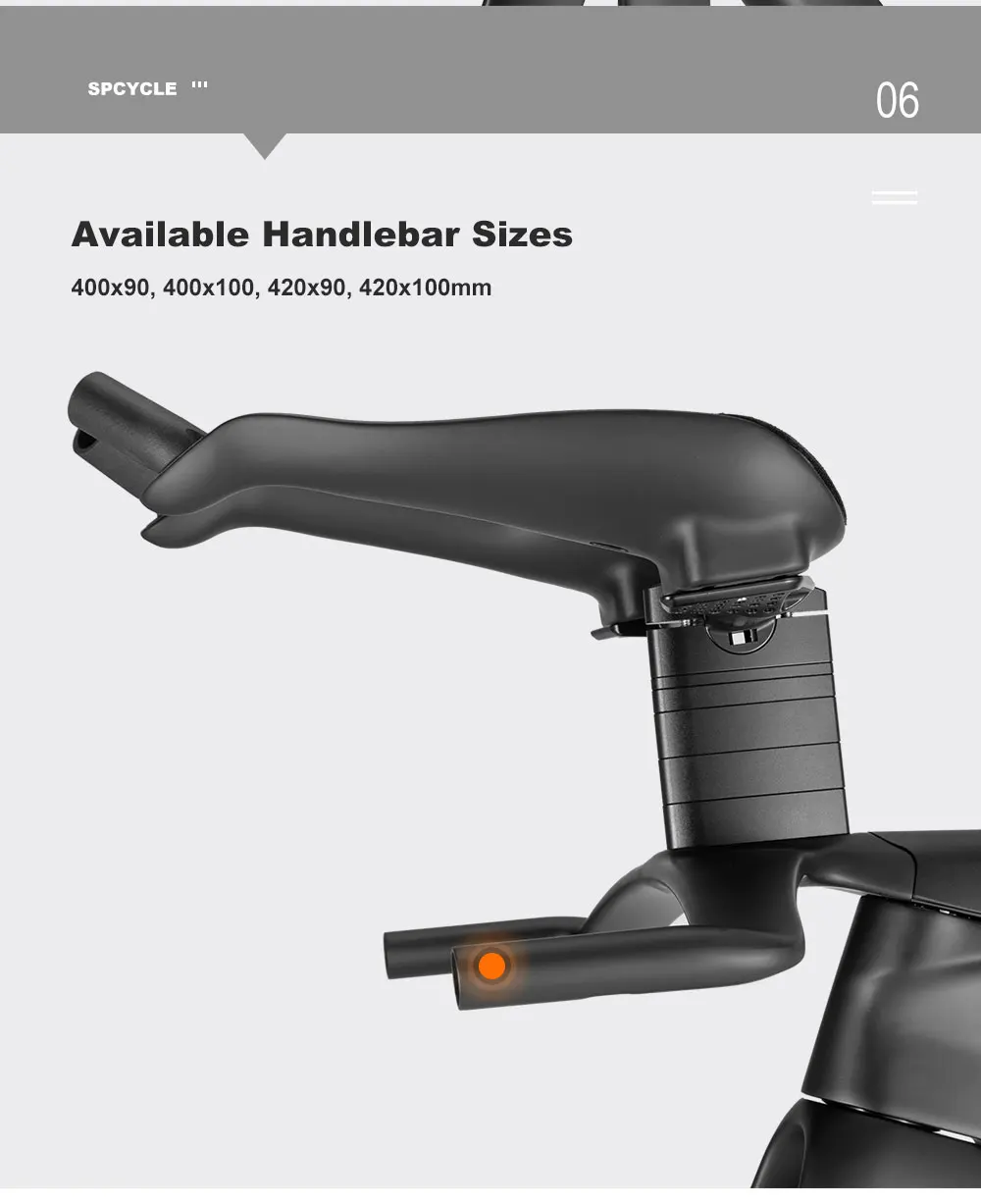

• Handlebar Size: 400x90mm, 400x100mm, 420x90mm, 420x100mm

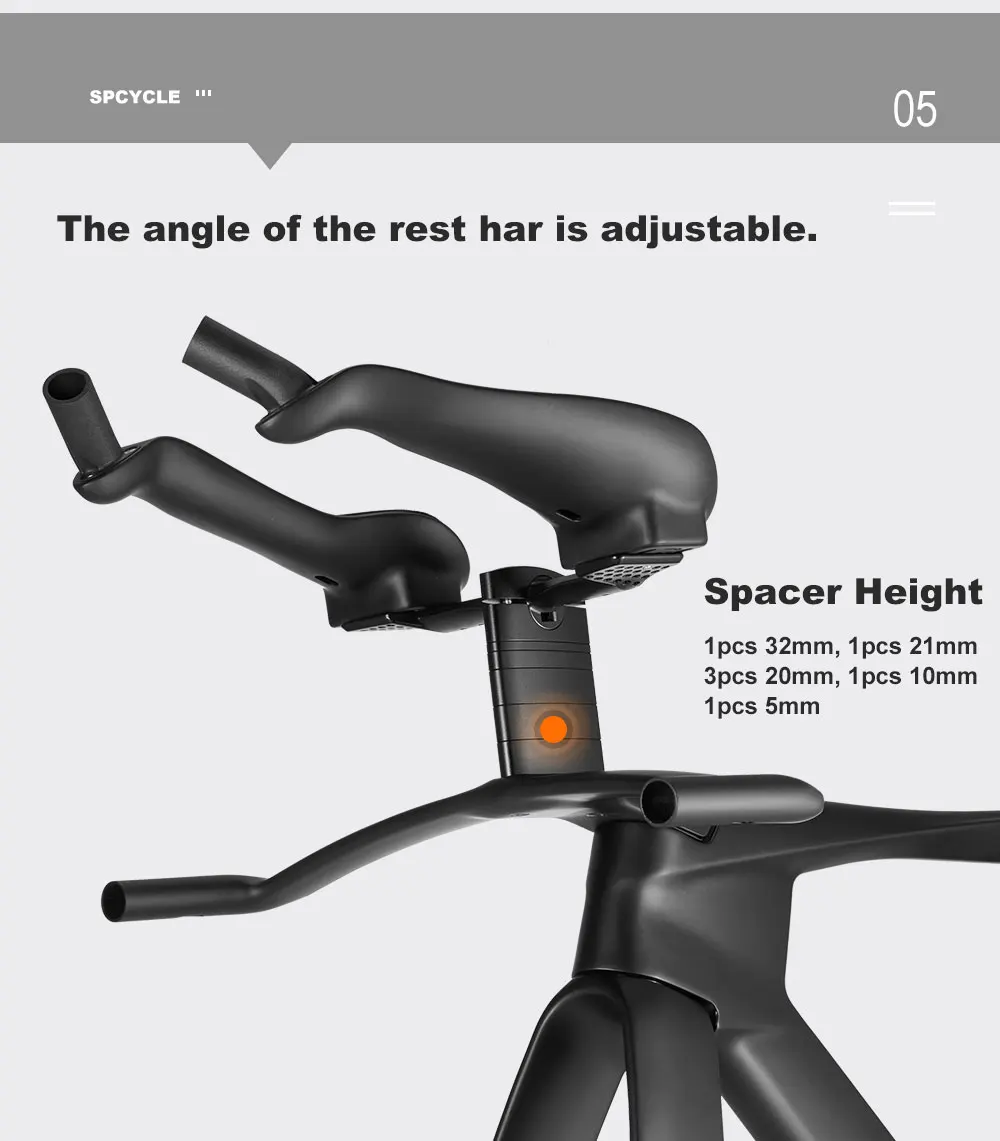

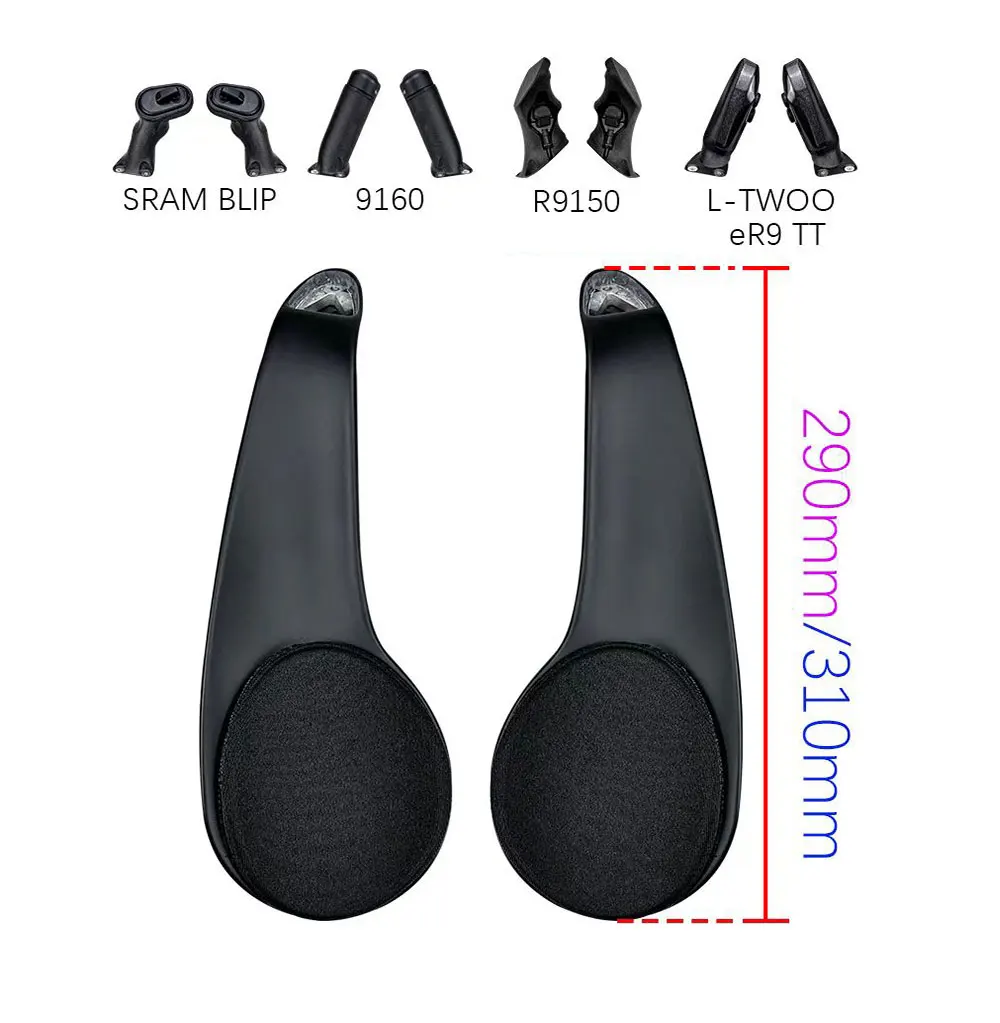

• Rest Bar Length: 290mm or 310mm

Weight: Frame(Matt Black) 1600±50g, Fork: 560±20g, SP:225±15g, HB Set 1460±50g

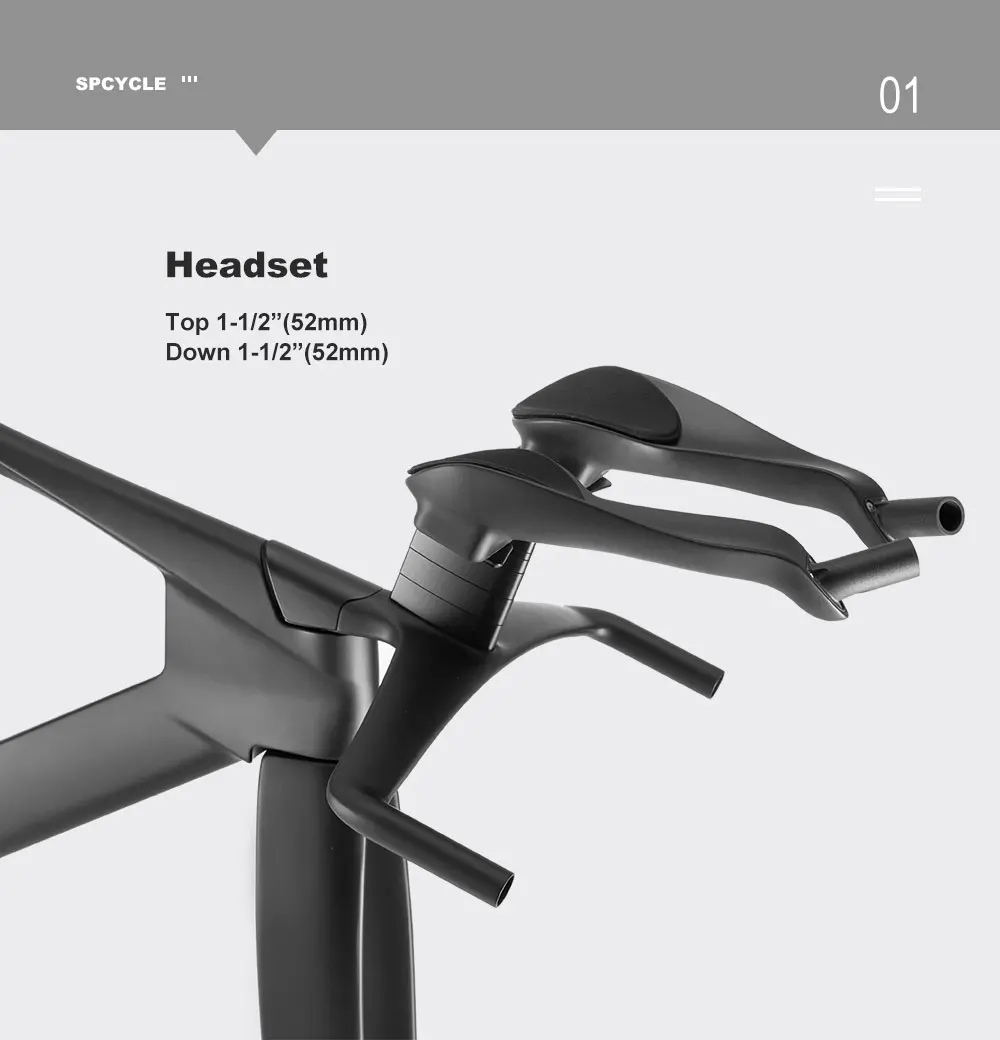

Head Tube: 1 1/2" – 1 1/2" (upper 52mm lower 52mm, )

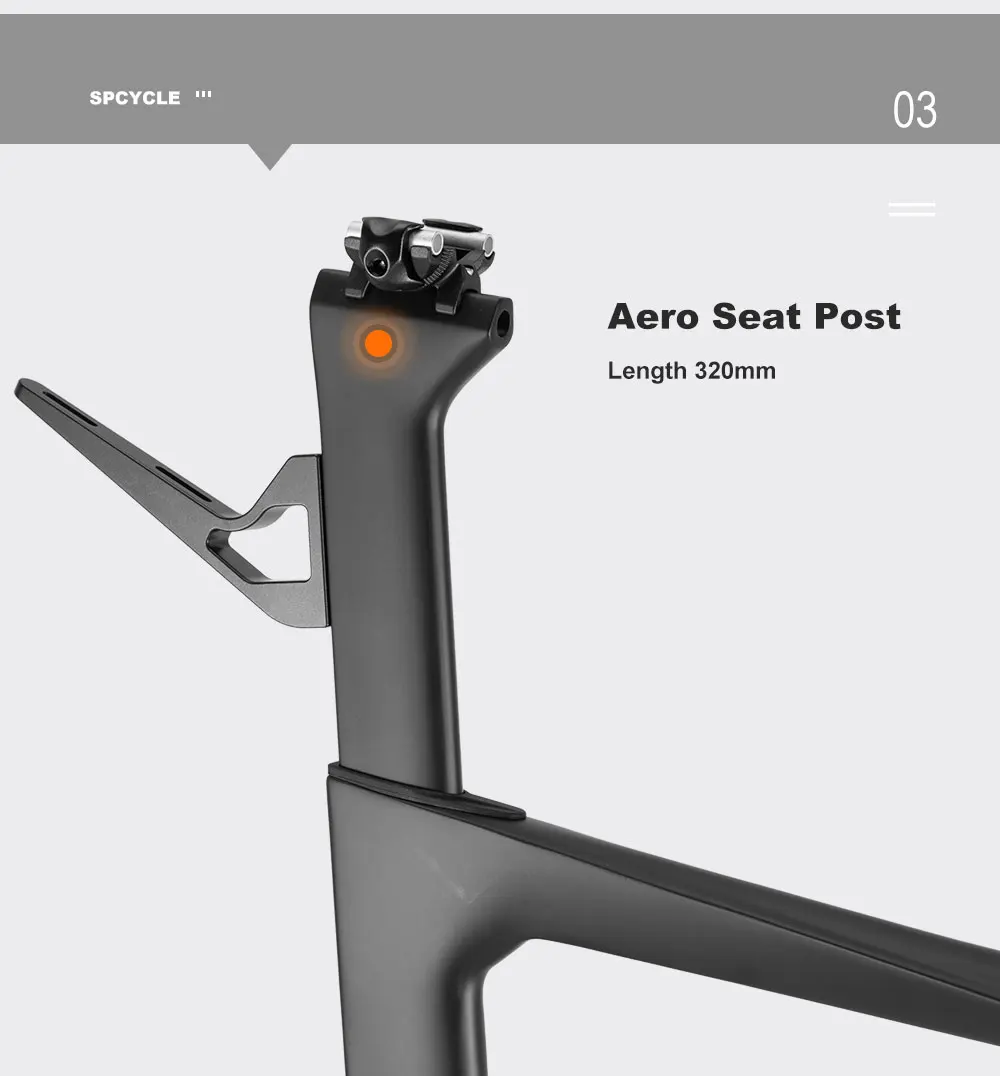

Seat Post：Specific 320mm length, Compatible with 7 * 7 and 7 * 9mm rails

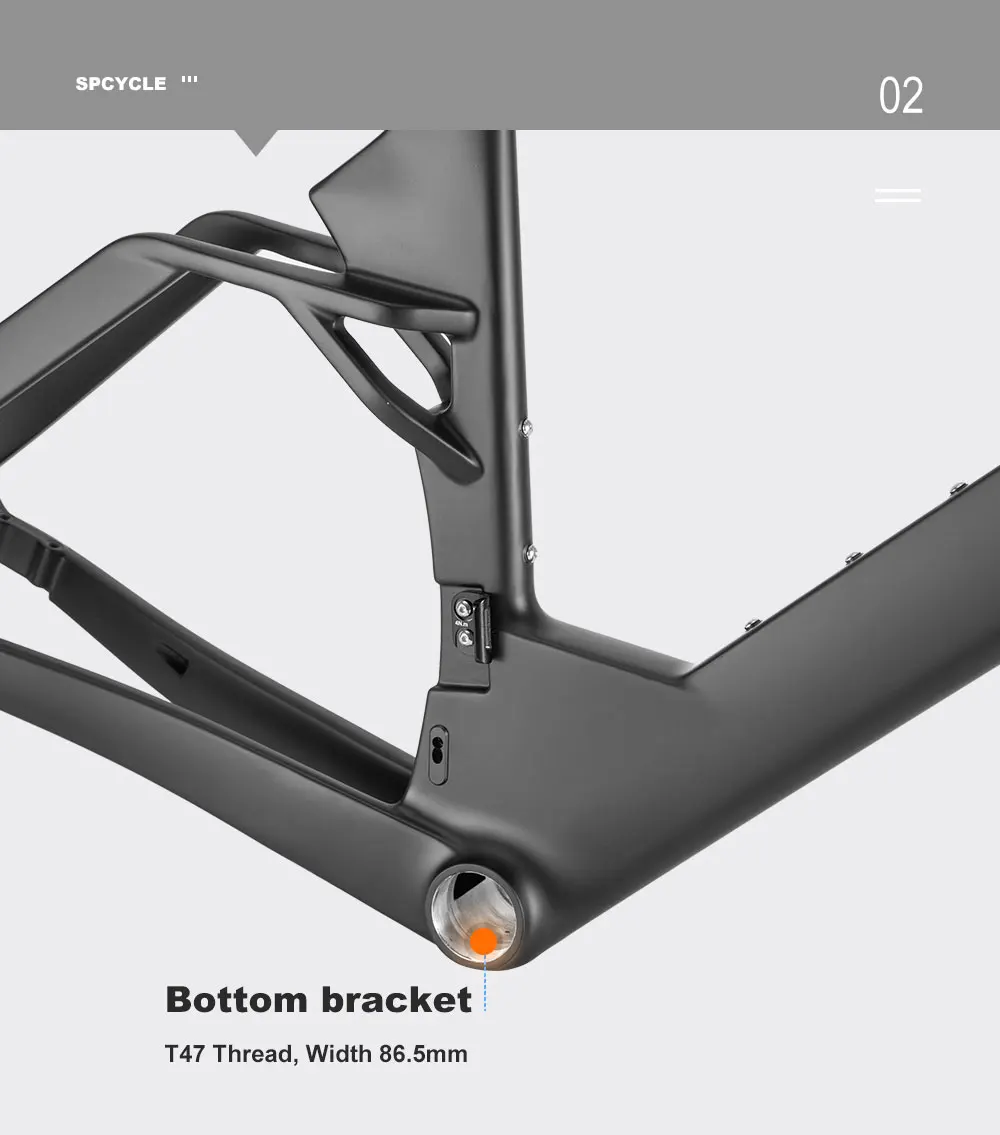

Bottom Bracket: T47 thread, BB shell width 86.5mm

Max Tire: 700*30C

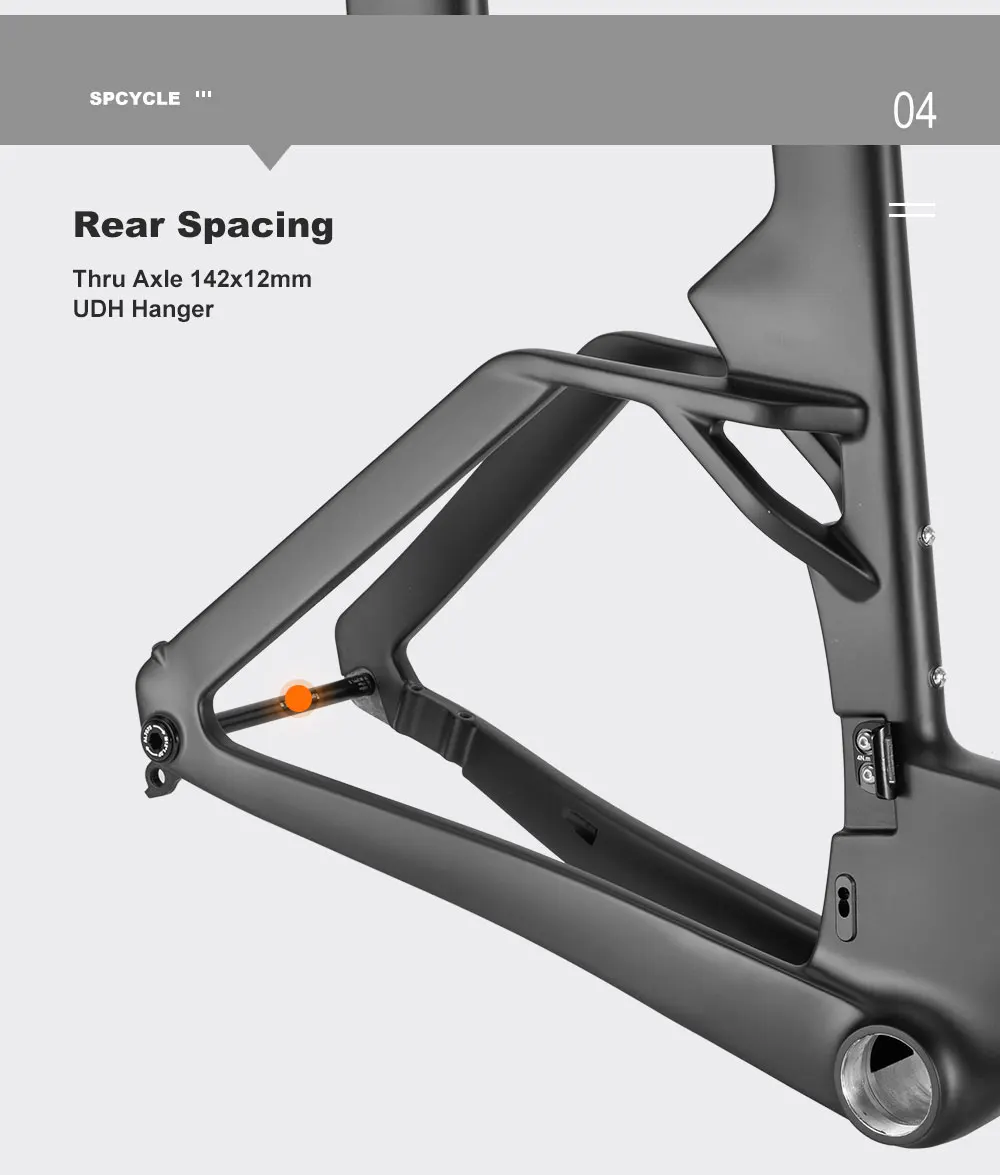

Dropout O.L.D： Rear Φ12*142mm, Fork Φ12*100mm

Testing Standard: ISO 4210 + 20%

Warranty: 2 Years (only for frameset, excluding free parts)

Custom Tax&Import Duty: Buyers Bear The Charges. we recommend EU and UK buyers choose "Seller Shipping Method", We can help you with customs clearance. Delivered directly to your home, without any taxes. shipping time about 15~25 days.
