  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset
  • Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset

Spcycle 2022 Carbon Gravel Bike Frame Disc Brake Off-Road Gravel Frame Max Tire 700x45C T1000 Carbon Cyclecross Frameset

stars, based on ( 0 ) reviews
$650.00$488.00 piece
Frame Size
Color
Options
9 items available

Item Specifics

Brand Name:
Spcycle
Model Number:
SP-G20
Material:
T1000 Full Carbon Fiber
Frame Size:
49/52/54/56/58cm
Handlebar Size:
450*80mm, 450*90mm, 470x90mm, 470*100mm, 470*110mm, 490*90mm, 490*100mm, 490*110mm, 490*120mm
Max Tire Size:
700*45C or 650Bx2.1
Bottom Bracket:
BB386, 46*86.5mm
Headset Size:
Top 1-1/2 (52mm) Down 1-1/2(52mm)
Fork Spacing:
100x12mm Thru Axle
Rear Hole Spacing:
142x12mm Thru Axle
Cable:
Full Hidden Inner Cable
Seatpost:
27.2*400mm
Brake:
Flat Mount Disc Brake, 140mm or 160mm rotor, if 160mm need add adaptor
Suitable Derailleur:
Di2 And Mechanical Both
Warranty:
2 years

Product Description

Spcycle Carbon Gravel Frame 700C Disc Brake Road Cyclocross Bicycle Frameset Super Light T1000 Carbon Fiber Gravel Bike Frame

Material: T1000 Full Carbon Fibre

Model Number:SP-G20

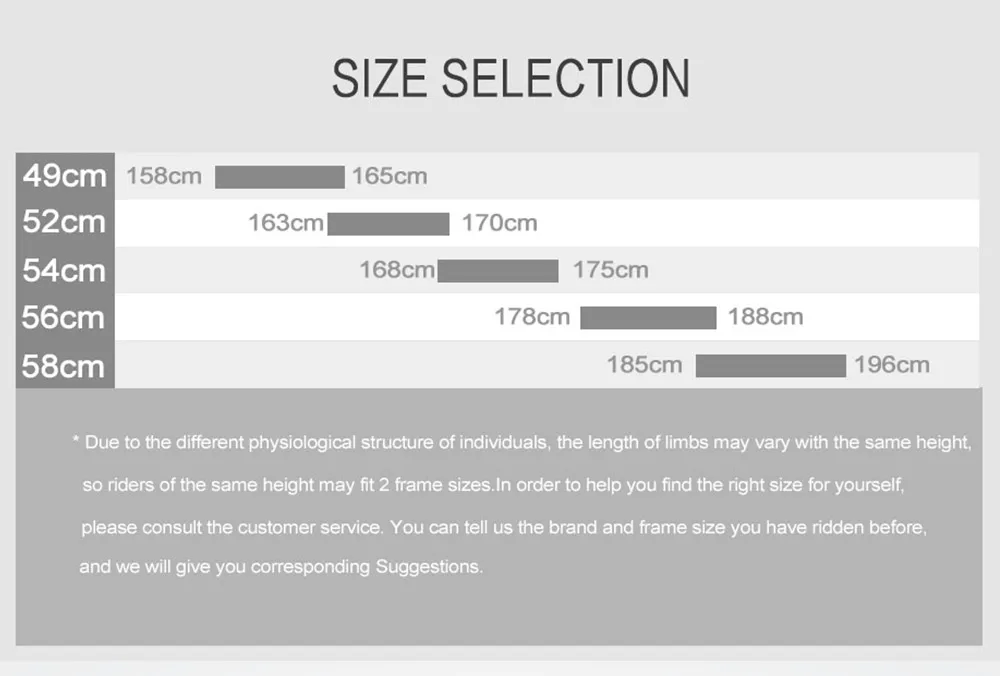

Available Size :49/52/54/56/58cm

Headset Size:Top 1-1/2 (52mm) Down 1-1/2(52mm)

Gravel Handlebar Size: 450*80mm, 450*90mm, 470x90mm, 470*100mm, 470*110mm, 490*90mm, 490*100mm, 490*110mm, 490*120mm, please choose!

Drop: 123mm

Reach: 77mm

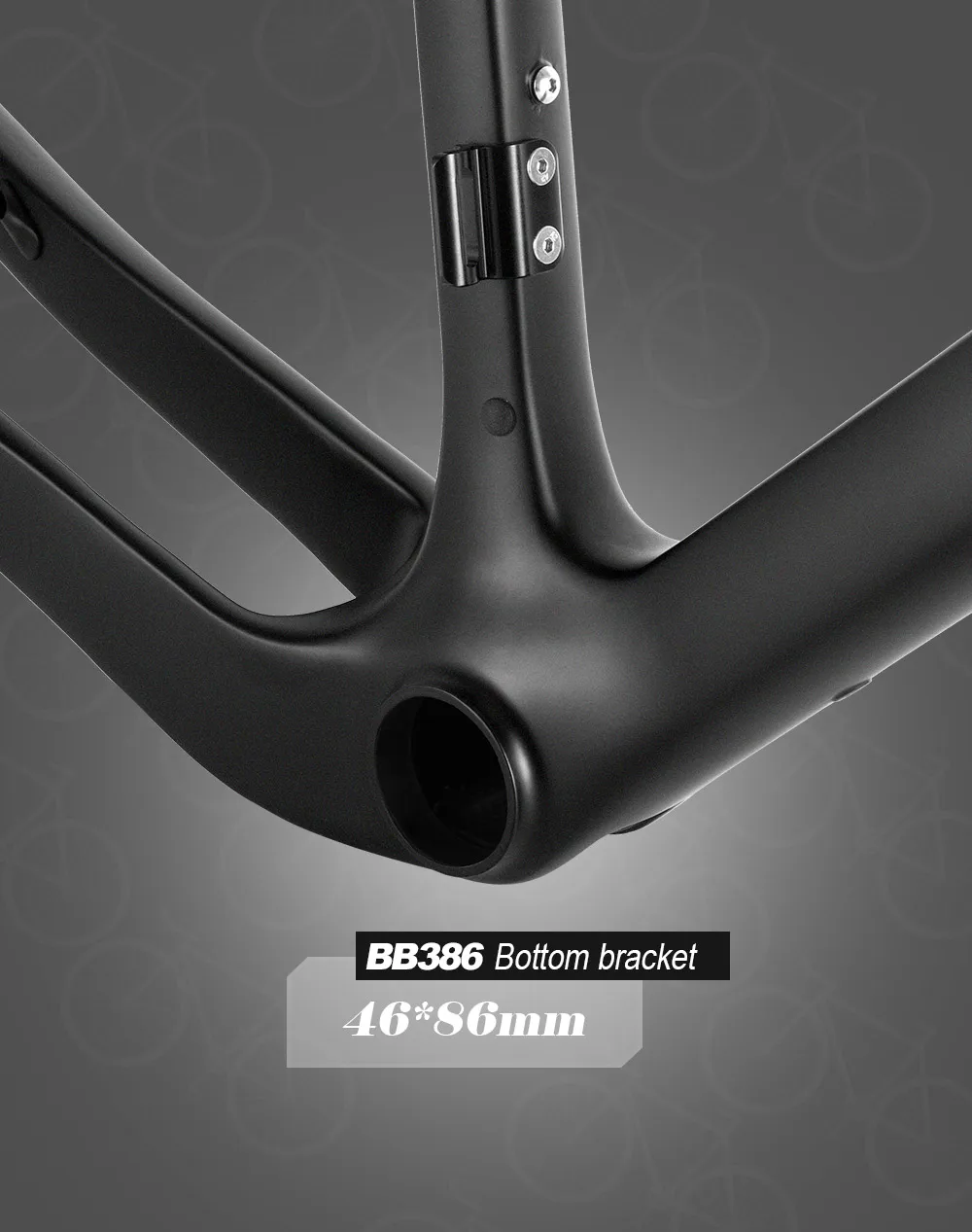

Bottom Bracket:BB386, 46*86.5mm

Cable : All Routing Internal

Seatpost : 27.2x400mm

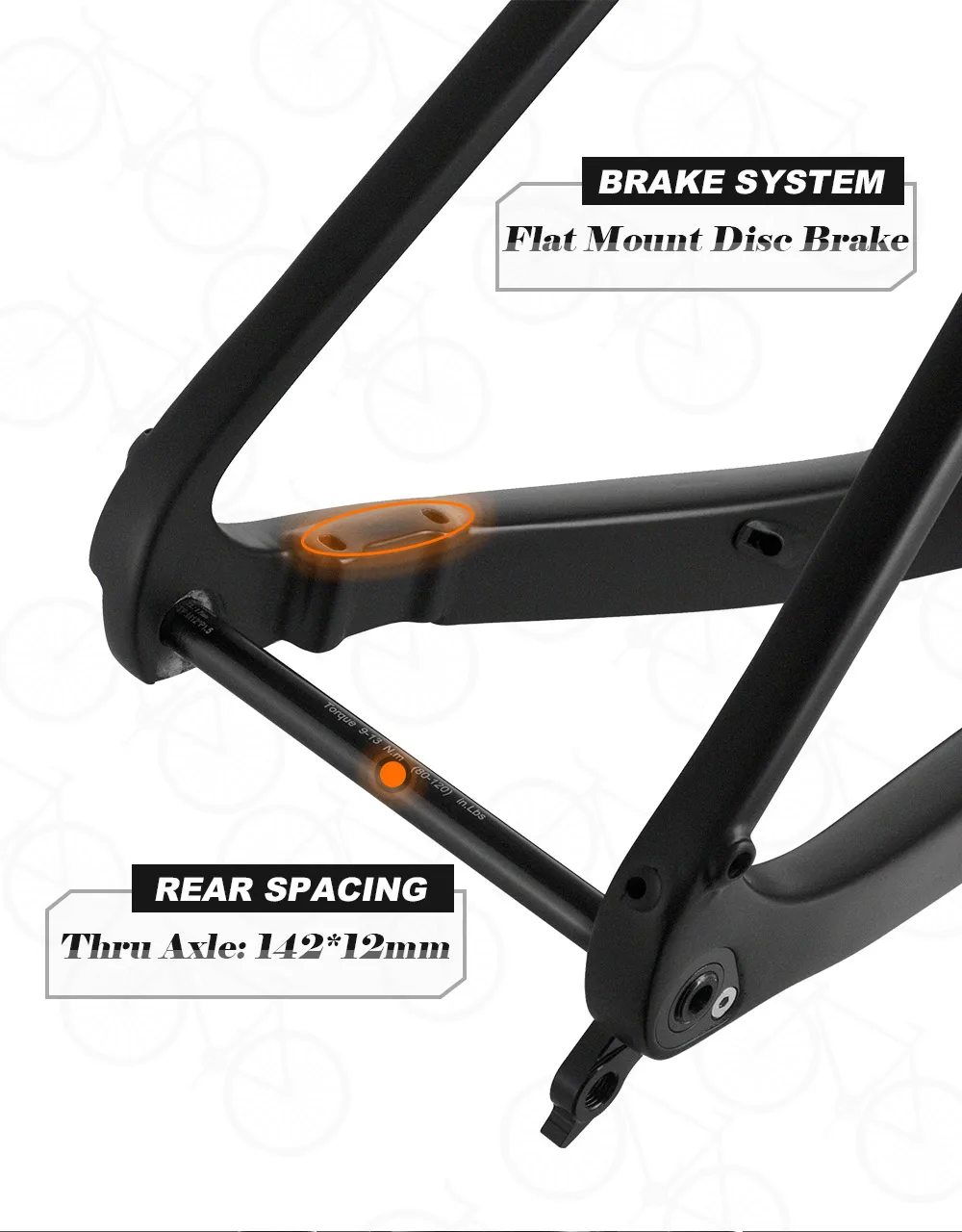

Brake: Flat Mount Disc Brake .

Max Tire Size: 700*45C or 650Bx2.1"

Spacing: Front 100x12mm, Rear 142x12mm.

Weight: Frame 1150g +/-60g, Fork 430+/-20g, Handlebar 350+/-20g, Seatpost 190+/-15g. (Matt Black)

Suitable Derailleur: Di2 And Mechanical Both

Warranty: 2 years

Custom Tax&Import Duty: Buyers Bear The Charges

EU and UK buyers, we recommend choosing the "DPD-UK" shipping method. We can help you with customs clearance. Delivered directly to your home, without any taxes.
