2024 New Spcycle 29er Full Suspension Carbon MTB Frame Travel 120mm Full Interal Routing Downcountry Mountain Bike Frame

stars, based on 6reviews
Price:
$798.00 / piece
Frame Size
  • Size S
  • Size M
  • Size L
  • Size XL
Color
  • Black Color
  • Solid Color Painting
  • Metallic Color Painting
  • Chameleon Paint
Finish
  • Matt
  • Glossy
Quantity: - + 13items available
Contact Us

Item specifics

Type:
2024 New Super Light 29er Full Suspension Frame
Model:
SP-M861
Material:
The front and rear triangles are Toray T1000 Full Carbon. The rocker arm is made of high strength aluminum alloy
Frame Size:
29er Size S M L XL
Headset Size:
Top 1-1/2
Bottom Bracket:
BSA 73mm Thread
Seatpost Size:
31.6mm
Rear Shock:
190x45mm, Standard install, Bushing specifications Front 8x50mm, Rear 8x22mm.
Travel:
Frame 120mm, Fork 120mm
Rear hanger:
148x12mm, UDH hanger
Cable:
All Internal Cable Routing
Brake:
190x45mm, Standard install, Bushing specifications Front 8x50mm, Rear 8x22mm.
Max Tire size:
29er*2.4
MAX CHAINRING Size:
38T
Frame Including:
Frame, Seatpost Clamp, Headset, Hanger, Thru Axle.
Weight:
Size S 1650+/-20g, Size M 1680+/-20g, Size L 1750+/-30g, Size XL 1780+/-30g. This is the weight of matt black frame
Warranty:
2 years (only for frame, excluding free parts)
Custom Tax&Import Duty:
Buyers Bear The Charges. we recommend EU and UK buyers use


For Europe


For EU and UK buyers, we will use DPD to deliver the frame to you. You don't have to pay customs clearance and pay extra fees. Shipping time is about 15~20 days.

2024 New Spcycle 29er Full Suspension Carbon MTB Frame Travel 120mm Full Interal Routing Downcountry Mountain Bike Frame


Model Name: SP-M861

Material: The front and rear triangles are Toray T1000 Full Carbon. The rocker arm is made of high strength aluminum alloy

Size: S M L XL

Finish: Glossy/Matt, chameleon default glossy finish.

Headtube: 1-1/2" to 1-1/2"

Bottom Bracket: BSA 73mm, threaded

Rear Shock: 190x45mm, Standard install, Bushing specifications Front 8x50mm, Rear 8x22mm.

Cable : Full hides internal cable routing

Frame Travel: 120mm

Advise Fork Travel: 120mm

Brake Type: Compatible with flat mount and post mount, Flat mount 160mm Rotor, Post mount 160mm or 180mm Rotor.

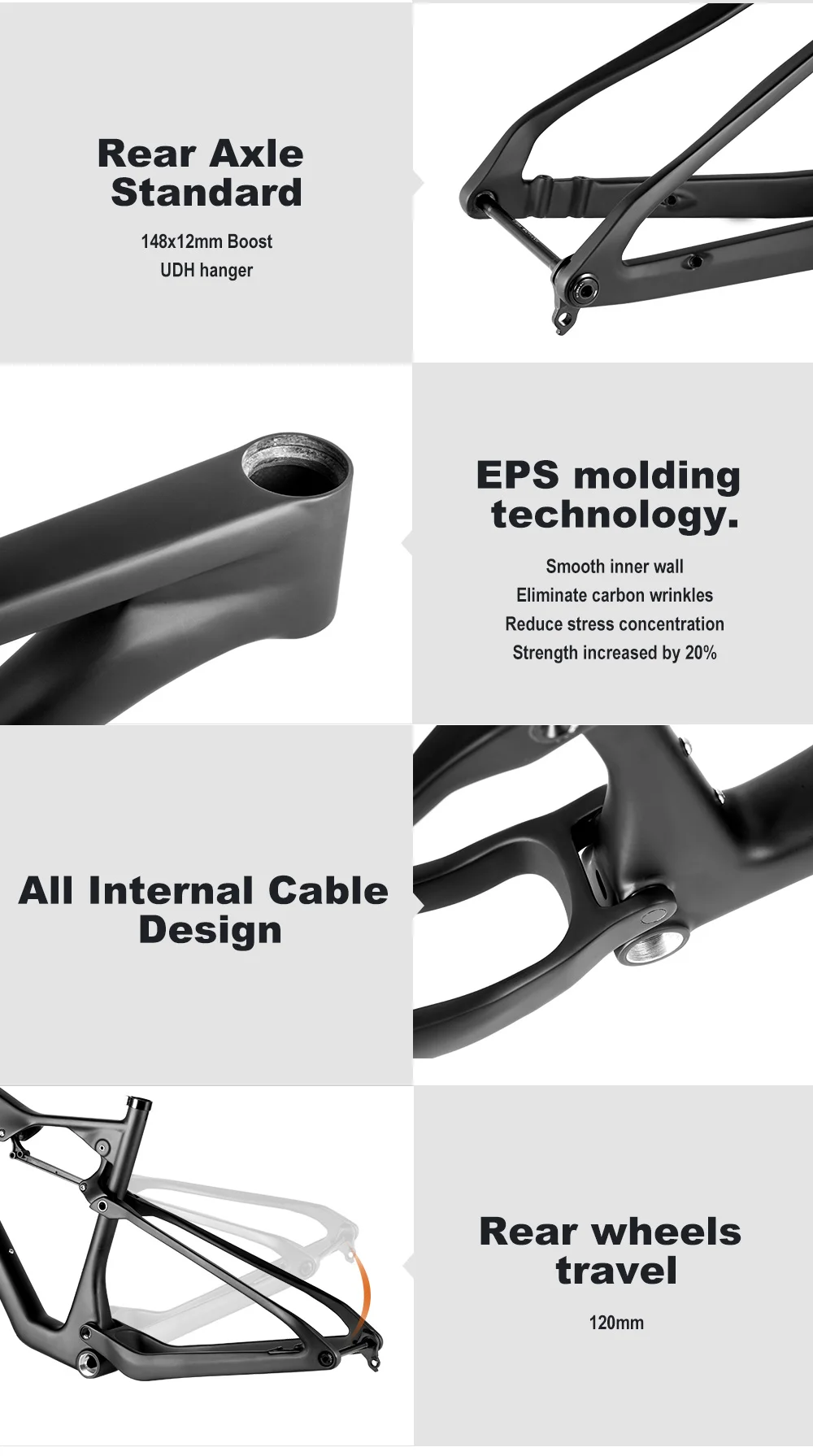

Rear Space : 12x148mm Boost, UDH Hanger

Seat Tube: 31.6mm

Max Tire: 29erx2.4"

Test Standard：ISO 4210+ 20%

Group set type:Machine & Di2 compatible

Crankset: Single chainring, Max 38T

Weight: Size S 1650+/-20g, Size M 1680+/-20g, Size L 1750+/-30g, Size XL 1780+/-30g. This is the weight of matt black frame

Features: Super light, EPS technology, The best way to make it.

Package including: Frame + Clamp + headset + thru axle.

Custom Tax&Import Duty: Buyers Bear The Charges.






hot-sale product

    Recent Reviews ( 6 )
    By
    The frame seems to be well made and according to the specified weight, anyhow I have a few points for consideration 1. The distances and spacers between main rear triangle and bearings shall be more thought and equal (e g. Two spacers is hard to align, and the bearings are exposed to elements while riding), 2 there are no plugs included to cover massive cable holes in rear triangle and the frame - I had to glue silicone seal like in spec or orbea to prevent letting in the water and dust. The plugs are not included as well to close rear derailleur hole in case of axs use, 3. The headset included in the set is useless - cables are going under the steam directly and it means tons (a few cm) spacers or you need better headset - in my case across did the trick, 4. The rear axle has different thread (1.5 I believe) than screw attached to UDH (1mm in standard) so I had to buy non-stsbdard UDH screw or new rear axle).
    I bought the same frame, just getting it together. Please, in which holes did you put silicone? Did the rear derailer working well, my is too low. You can also write me on milos.kyselica@gmail.com Thanks and Greetings Miloš
    By Miloš Tuesday, 04 June 2024
    By
    Hi, How much are DPD shipping costs for central Italy?Thanks
    Hi Davide, The price of M861 Frame includes DPD shipping cost. The price of matt black frame is 798USD. thank you
    By Spcycle Monday, 26 August 2024
    By
    Phil VidalHi, you admit I have placed and paid my order for this frame SP-M861, size S, Matt black, ok, thanks to confirm. Regards.
    By
    Hi, quite a nice frame which could suit me.I already said that, it must be size 5, matt I think. One of you announced it will be on the market at 15th of december.Should I give you my details : e-mailphilvidalcassis@hotmail.frRegards.
    By
    Hi bike loos nice. Can you include the right shock hardeware and is it possible to run a cable from the shock to the handlebars?
    By
    Can i have that frame without colours only carbon ?
    +
